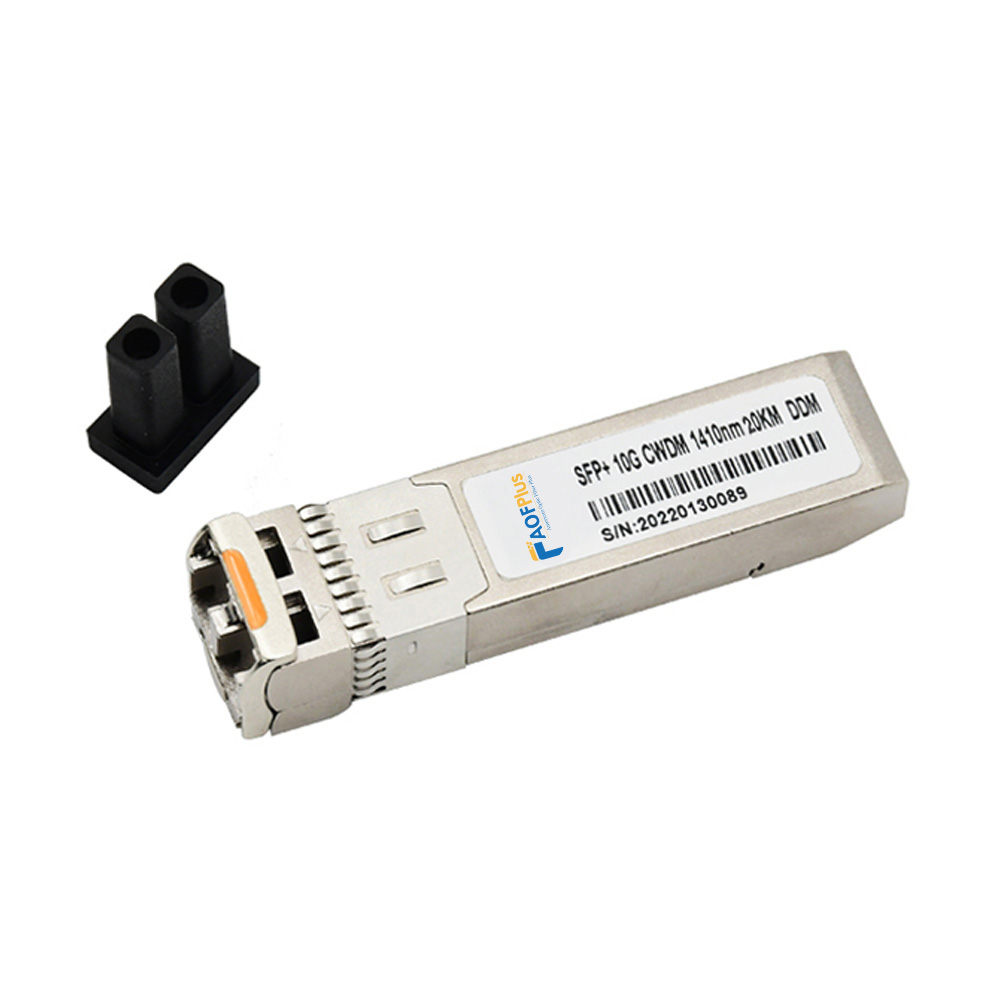

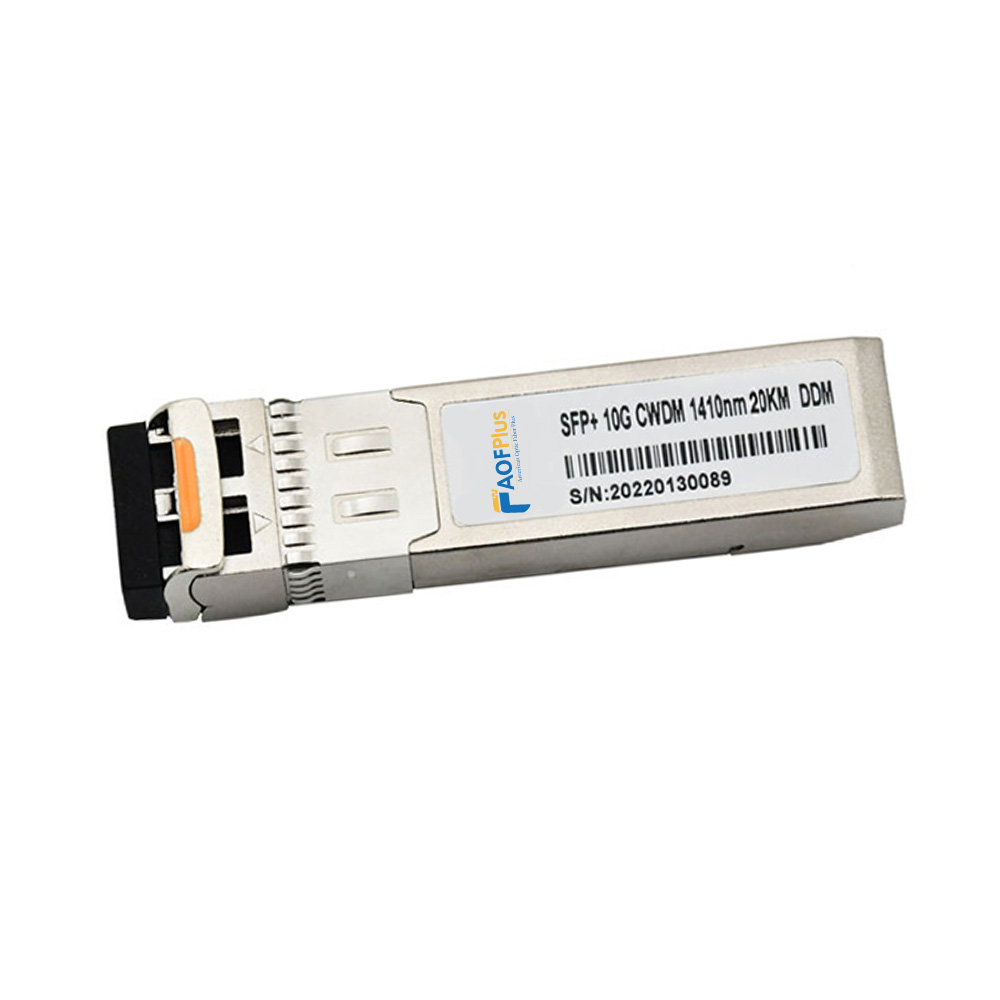

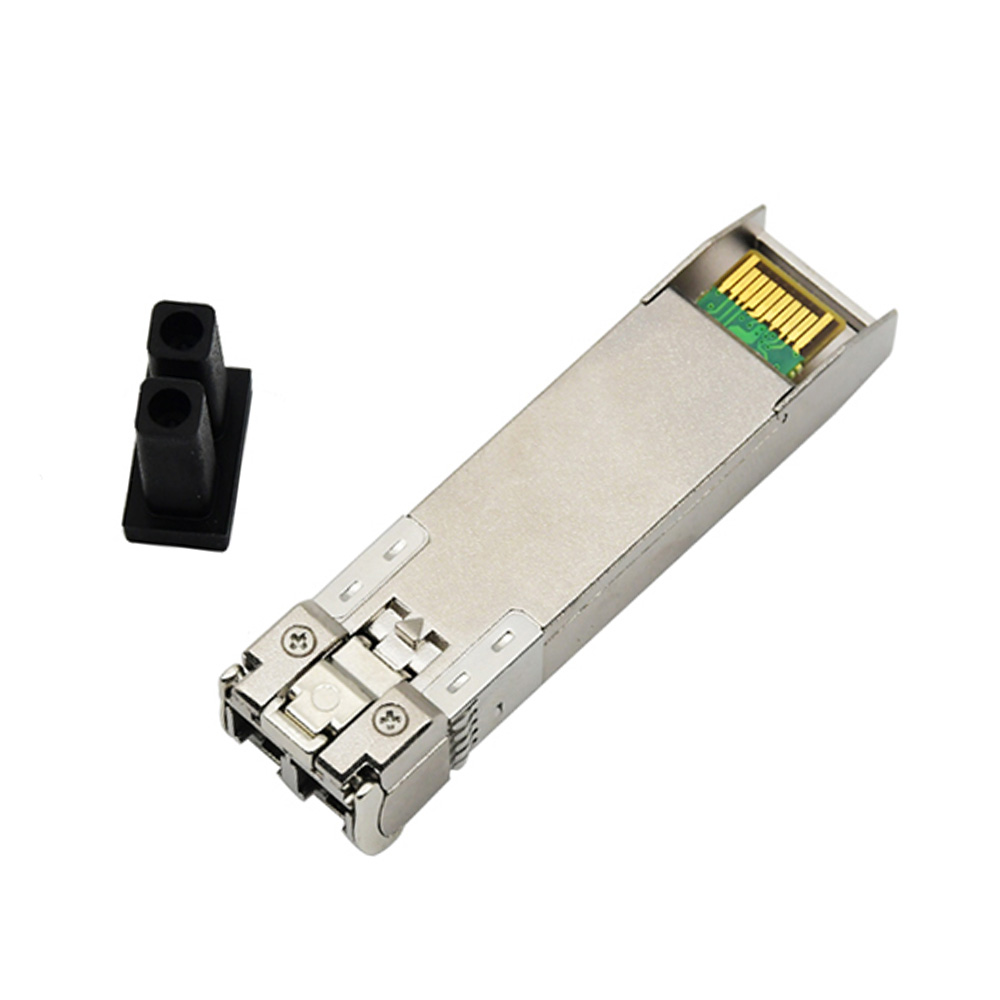

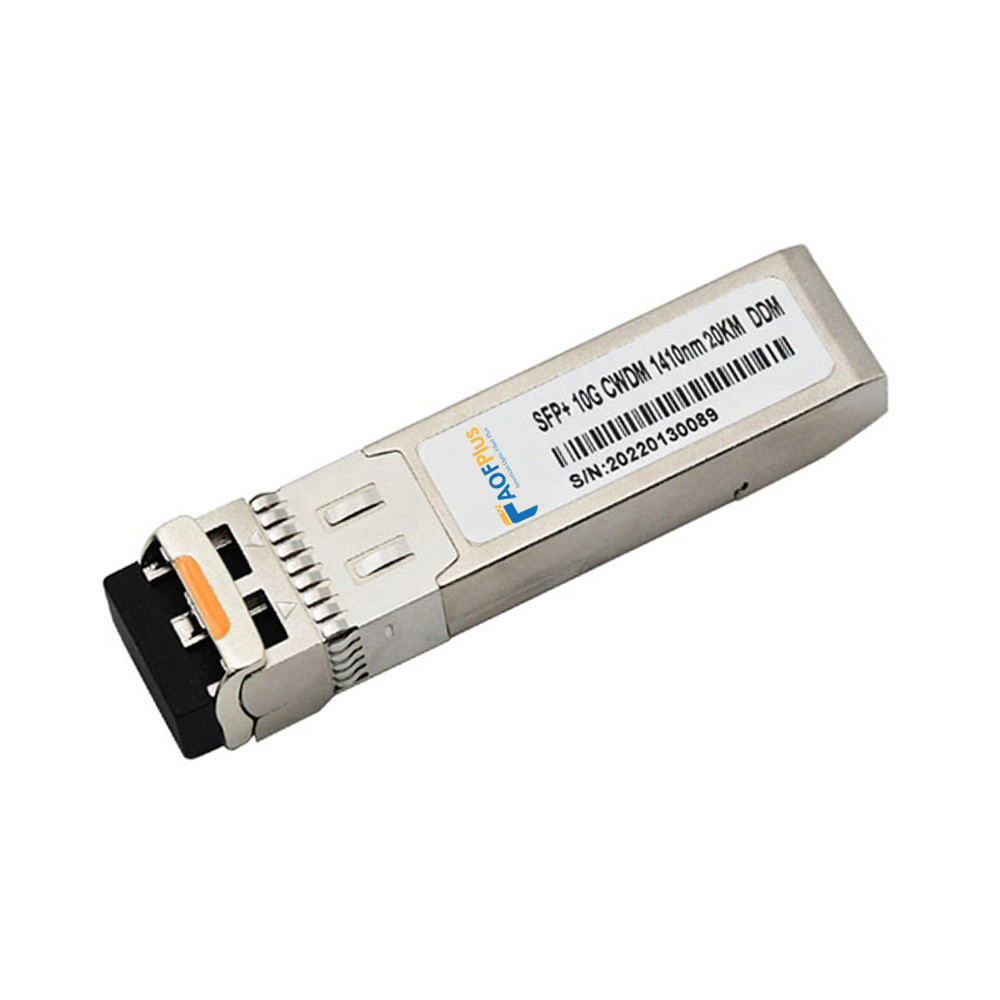

10G DWDM fiber module is a necessary solution for modern optical communication demands. Equipped with a 10G data rate, the fiber transceiver can handle heavy data traffic with ease, making it ideal for bandwidth-intensive applications. Operating within the 1390 to1490nm wavelength range under CWDM technology, it provides reliable and efficient signal transmission. With a 20km transmission distance, it bridges network nodes across moderate distances. The Duplex LC/UPC connectors guarantee stable optical connections, while the Single Mode design effectively reduces signal attenuation and dispersion, ensuring accurate data reception. This SFP+ transceiver allows for effortless installation and replacement, optimizing space utilization in network racks.

Form Factor	SFP+	Max Data Rate	10Gbps
Wavelength	1390-1490nm	Max Cable Distance	20km
Connector	Duplex LC	Media	SMF
Transmitter Type	CWDM DFB	Receiver Type	PIN
TX Power	0~7dBm	RX Power	-14.4~0.5dBm
Power Consumption	≤1.5W	Receiver Sensitivity	<-14.4dBm
Modulation	NRZ	Extinction Ratio	>3.5dB
DDM/DOM	Supported	Commercial Temperature Range	0°C to 70°C(32℉-158℉)
Packaging Technology	TO	Protocols	SFP+ MSA Compliant, CPRI, eCPRI, ITU-T G.652
