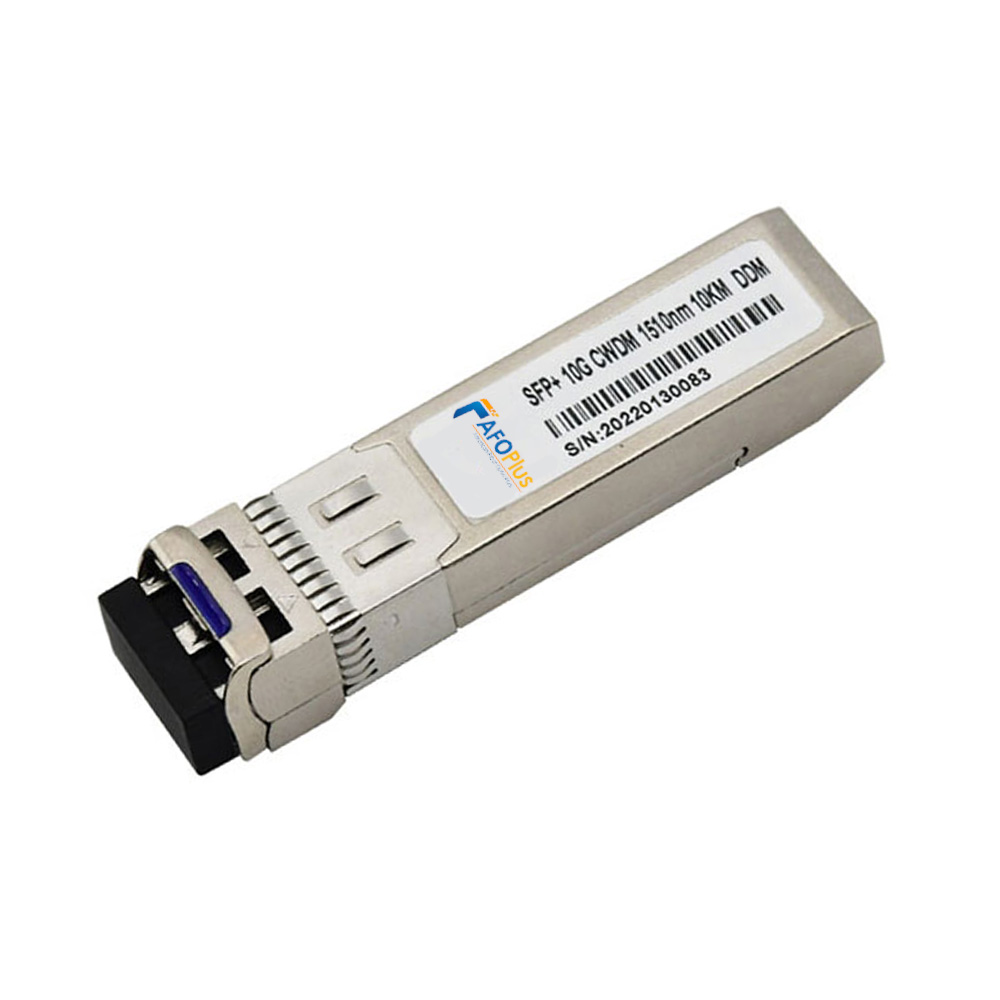

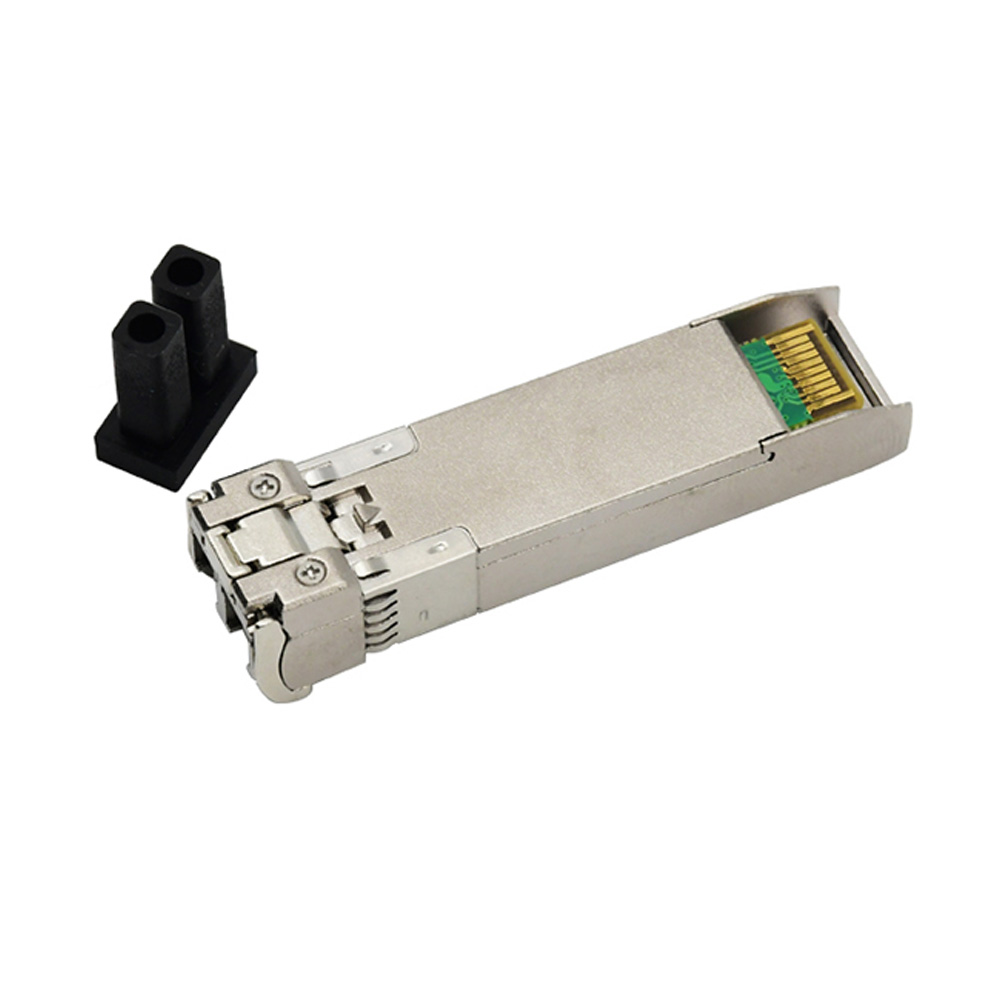

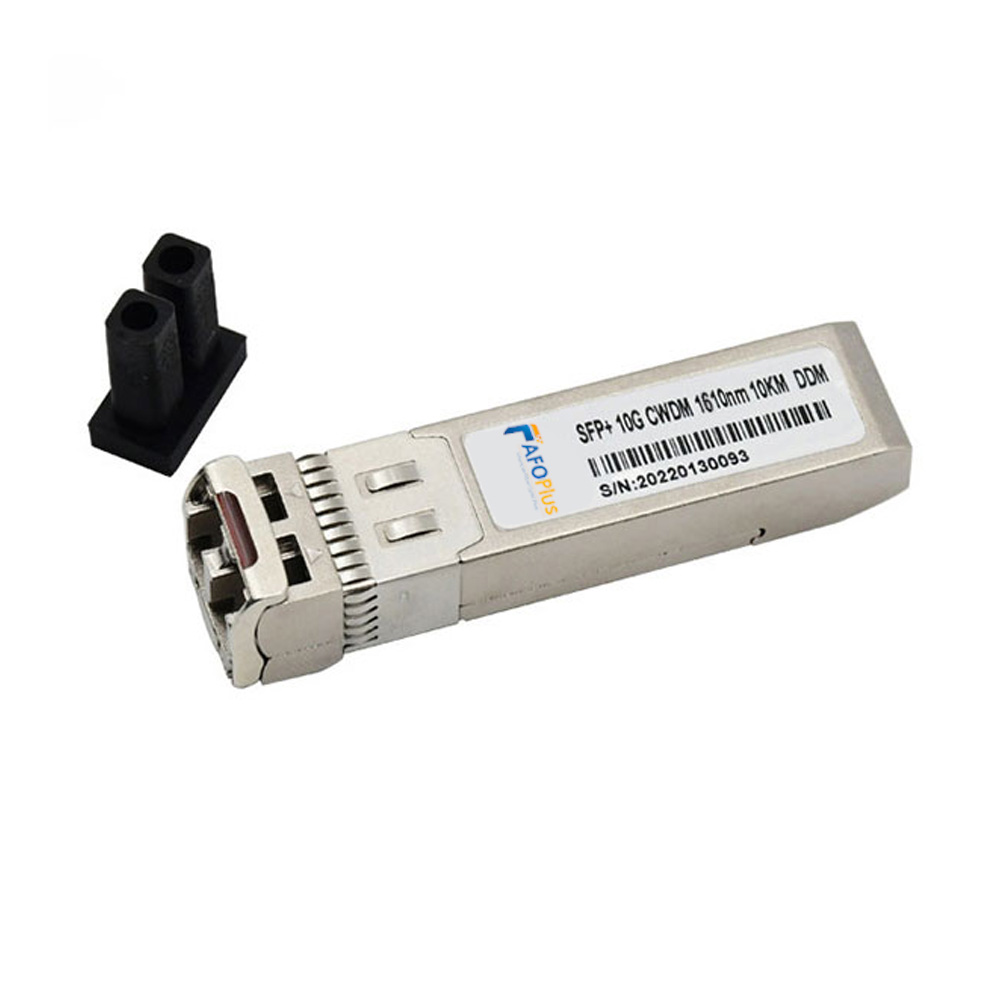

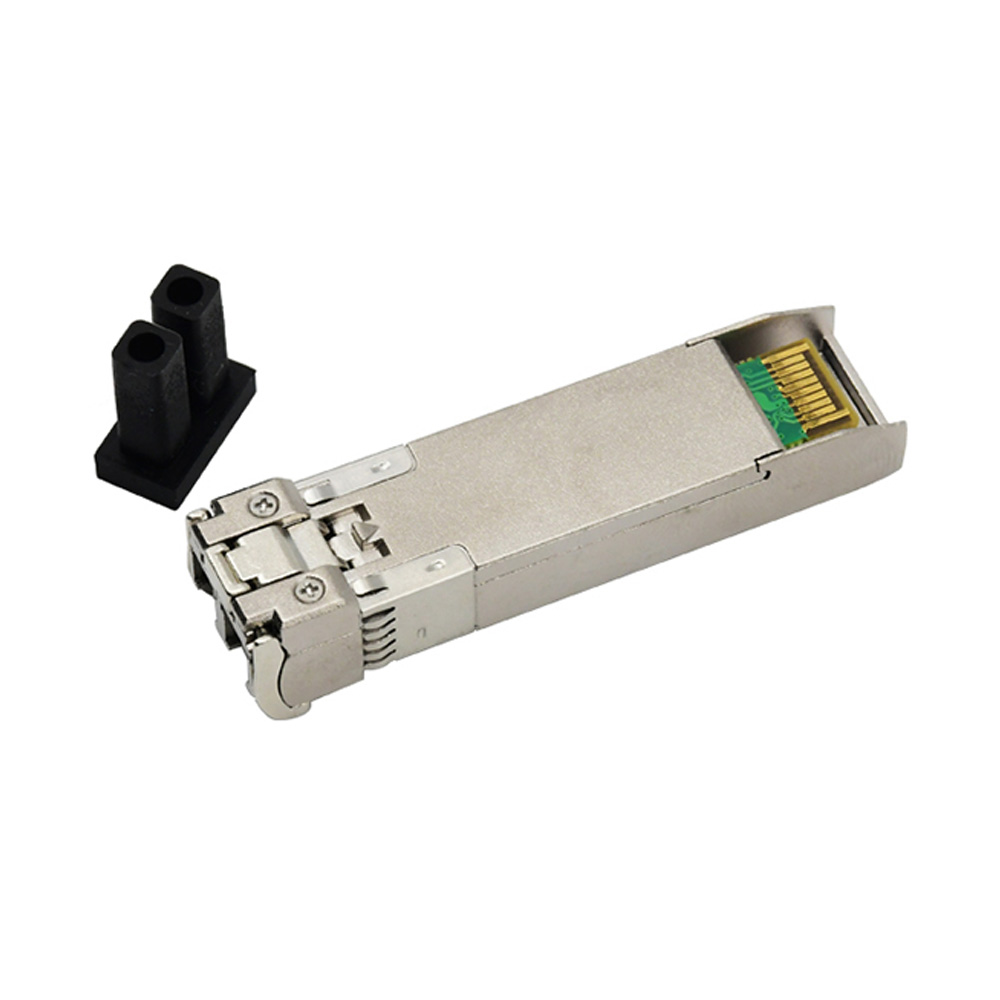

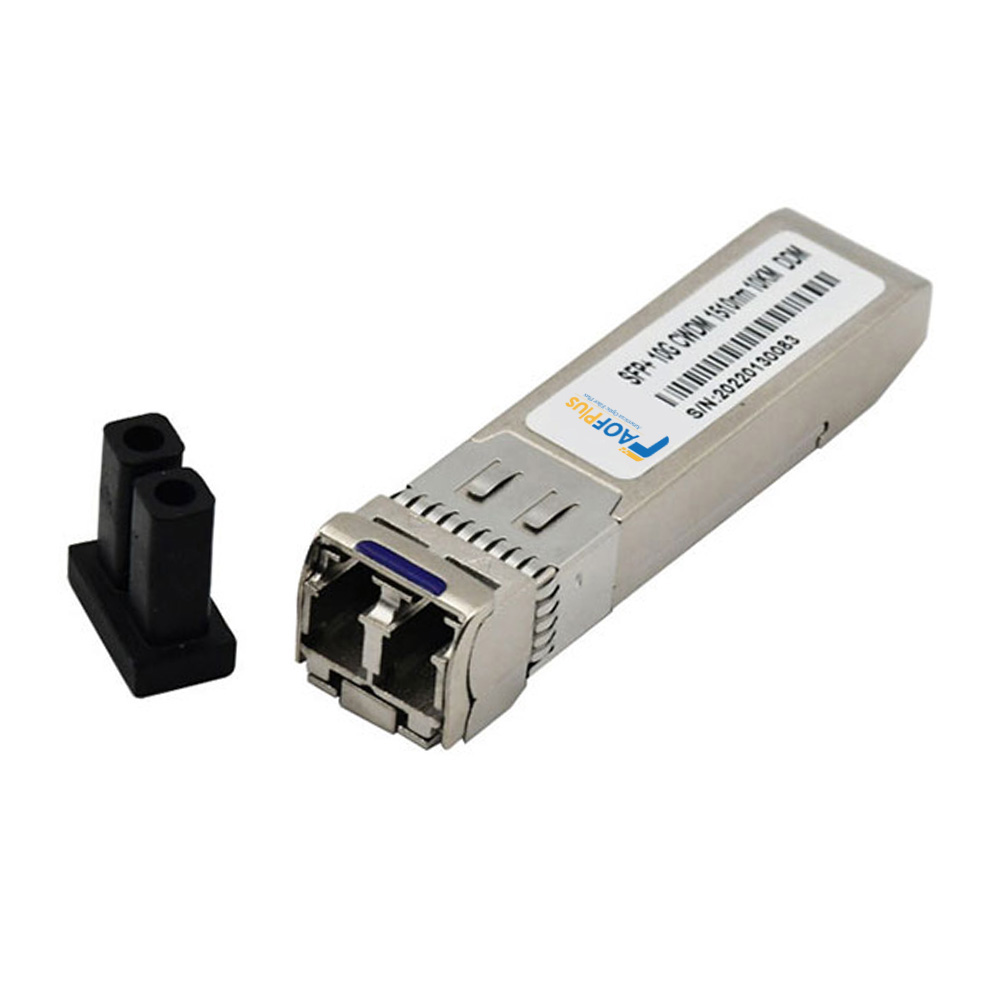

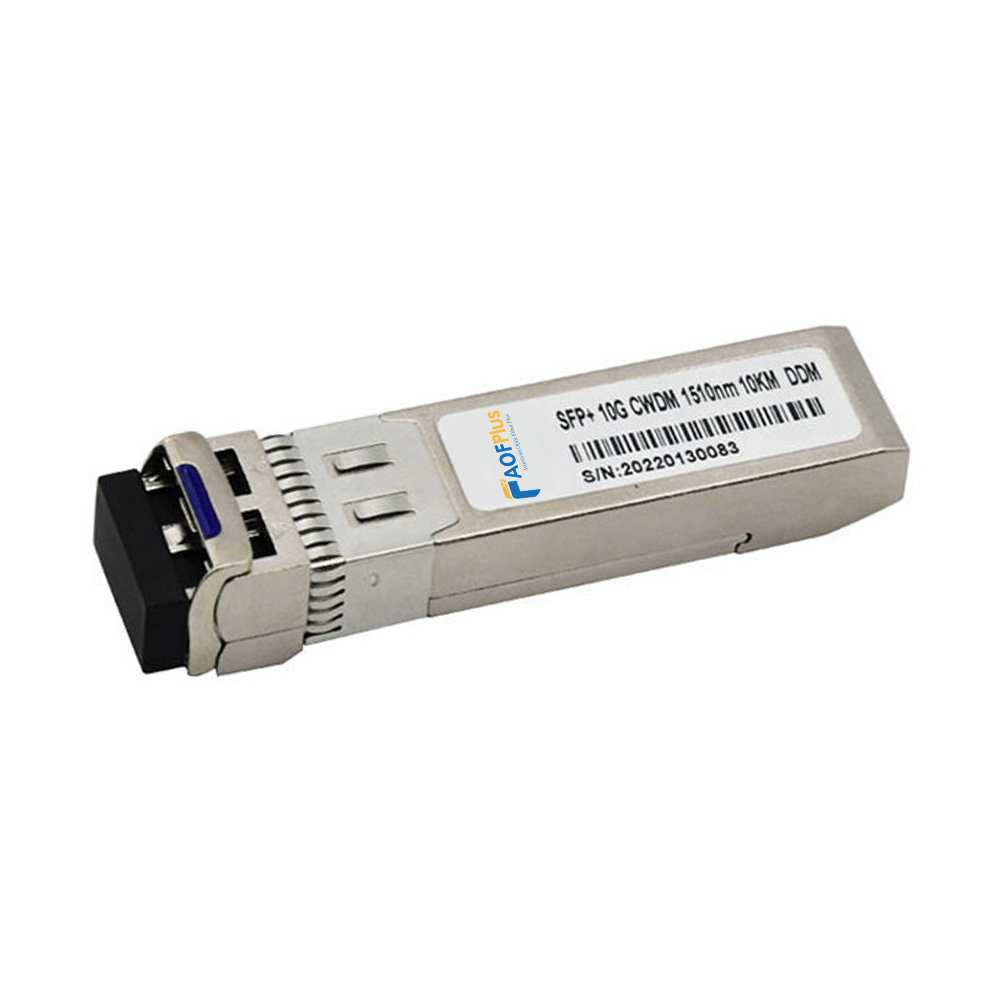

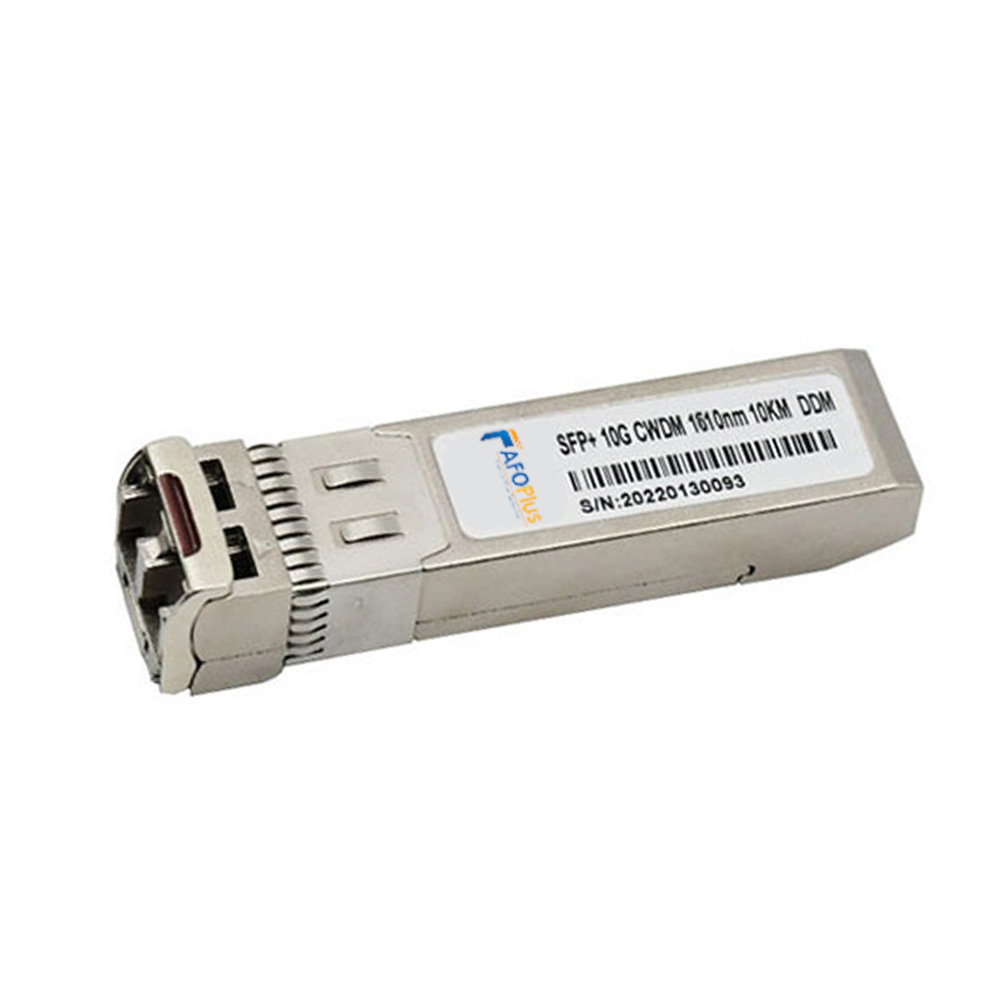

Various brands compatible CWDM 10G SFP+ fiber optical transceiver is designed for top-tier network performance, operating in the 1510-1610nm wavelength range to support ultra-fast data rates of up to 10Gbps, ideal for high-bandwidth applications. With a robust transmission distance of 10km, the CWDM SFP+ module effortlessly connects network nodes across short- to medium-haul distances. Equipped with duplex LC/UPC interface for reliable connections and seamless integration into existing networking infrastructures, this compact, rugged SFP+ fiber transceiver is perfect for diverse network settings, enhancing overall network capacity, reliability, and scalability.

Form Factor	SFP+	Max Data Rate	10Gbps
Wavelength	1510nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
Transmitter Type	CWDM DFB	Receiver Type	PIN
TX Power	-8.2~0.5dBm	RX Power	-14.4~0.5dBm
Power Consumption	≤1.5W	Receiver Sensitivity	<-14.4dBm
Modulation	NRZ	Extinction Ratio	>3.5dB
DDM/DOM	Supported	Commercial Temperature Range	0°C to 70°C(32℉-158℉)
Packaging Technology	TO	Protocols	SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T G.652
