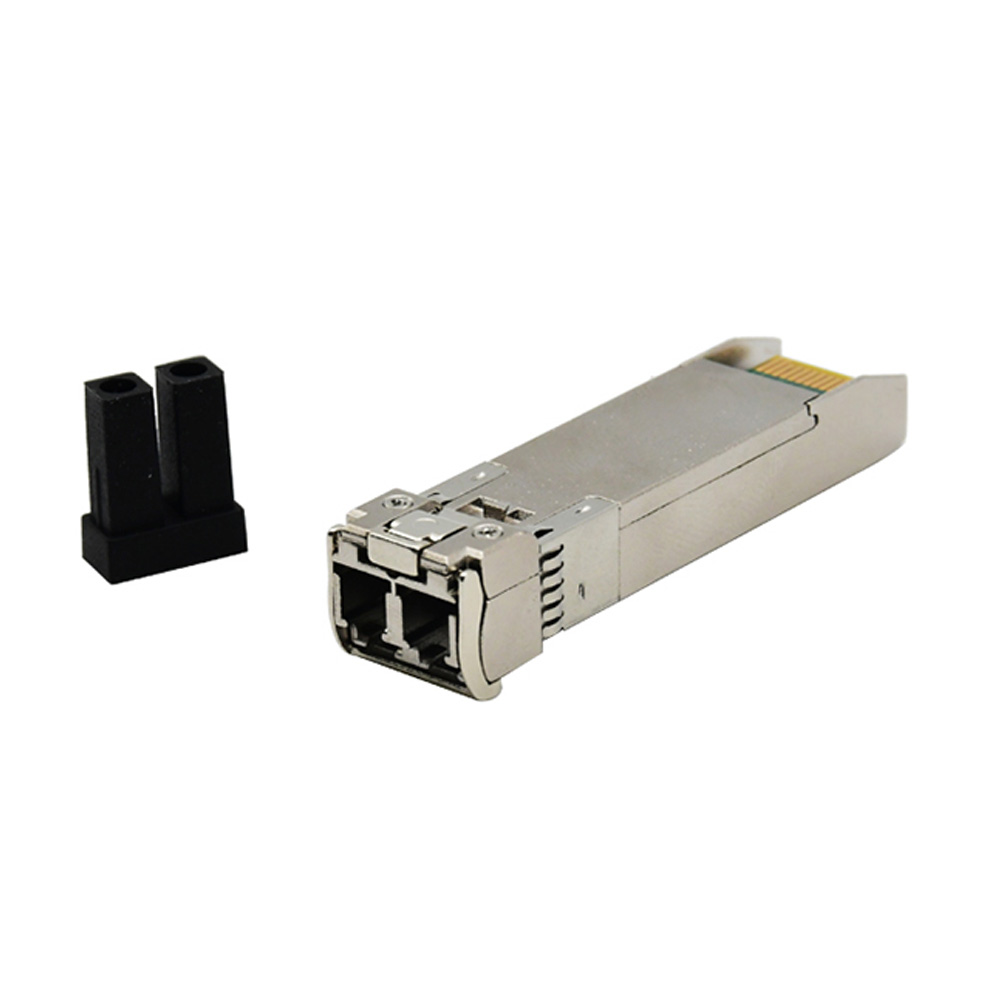

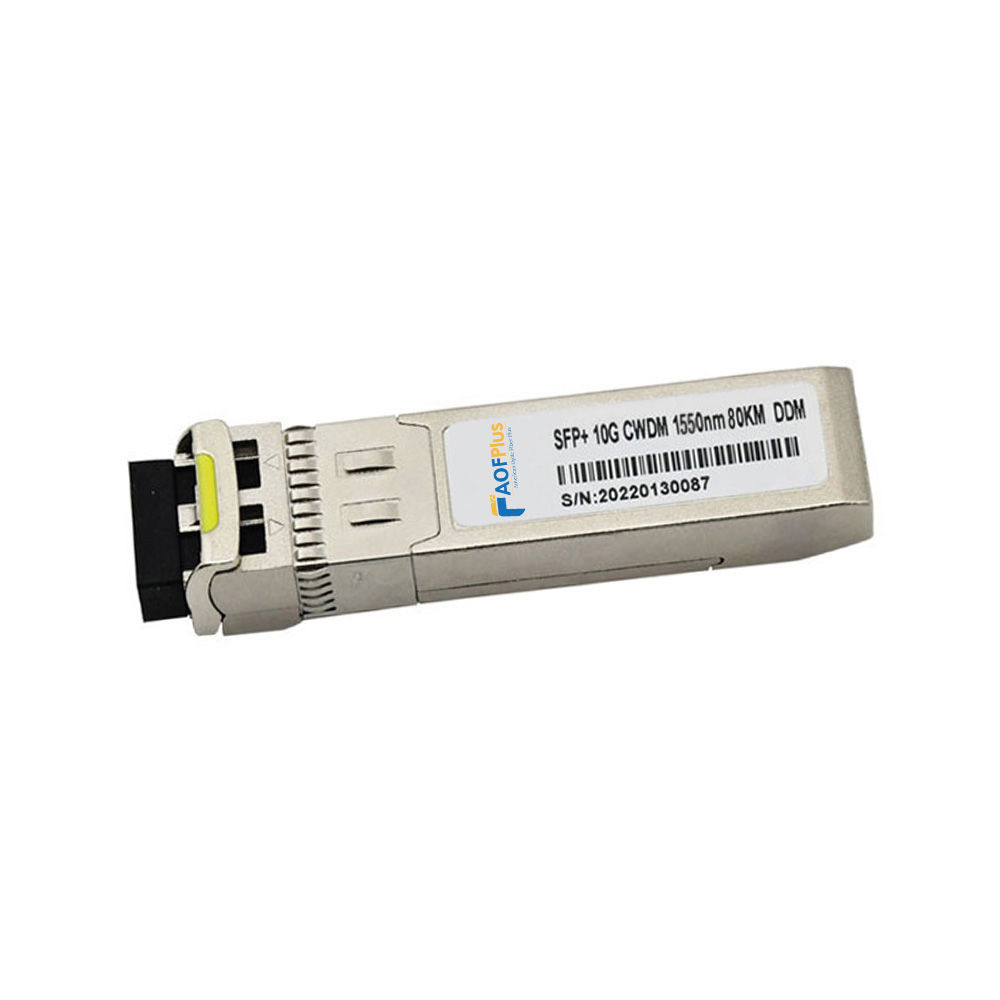

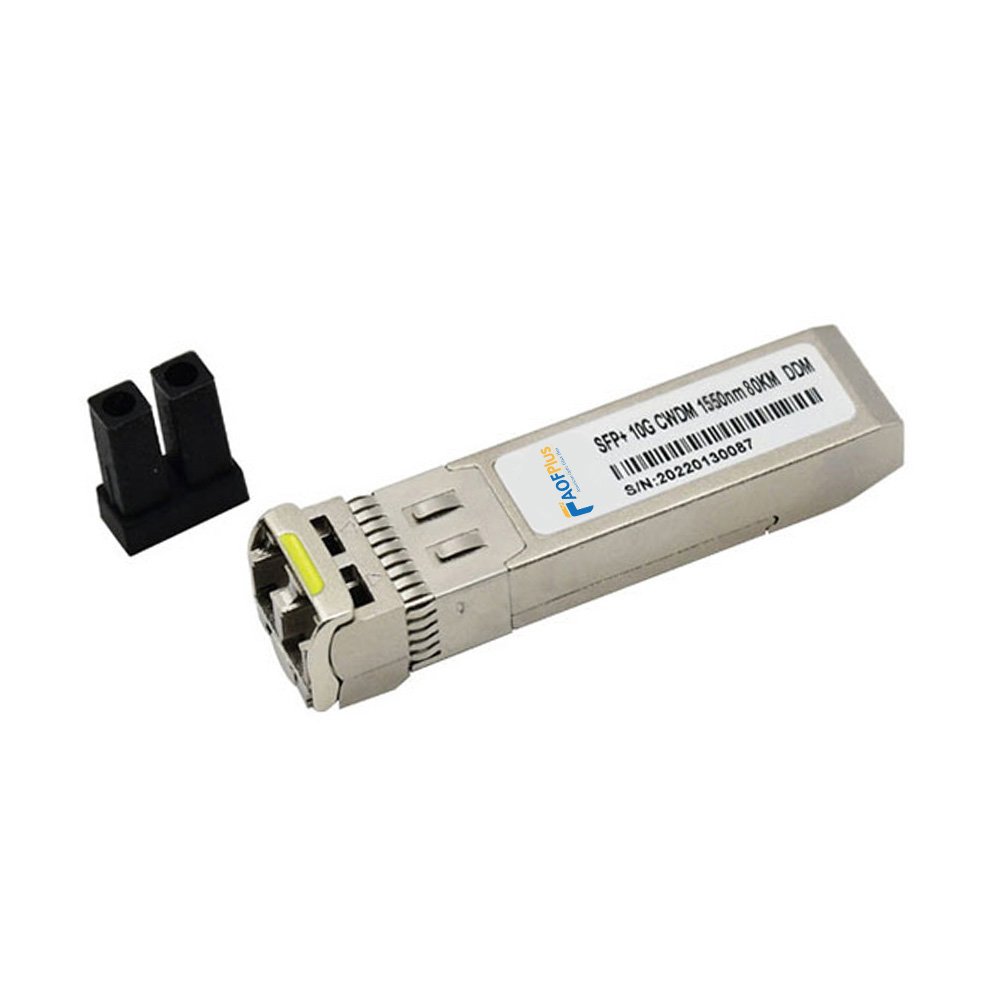

With a 10G data rate, operating within the 1270 - 1610nm wavelength band under CWDM technology, 10G fiber transceiver maximizes signal efficiency. The 80km transmission range makes the fiber optical transceivers can bridge network nodes across vast distances, such as linking offices of a large international organization. The duplex LC/UPC interface lay the foundation for unwavering optical connections, while the Single Mode design slashes signal attenuation, ensuring unerring data reception. This CWDM SFP+ fiber module is an essential component for any high-performance optical network.

Form Factor	SFP+	Max Data Rate	10Gbps
Wavelength	1550nm	Max Cable Distance	80km
Connector	Duplex LC	Media	SMF
TX Power	0~5dBm	RX Power	-24~-7dBm
Transmitter Type	CWDM DFB	Receiver Sensitivity	<-23dBm
Power Consumption	≤2.5W	Extinction Ratio	>3.5dB
DDM/DOM	Supported	Commercial Temperature Range	0°C to 70°C(32℉-158℉)
Modulation	NRZ	Protocols	SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T G.652
