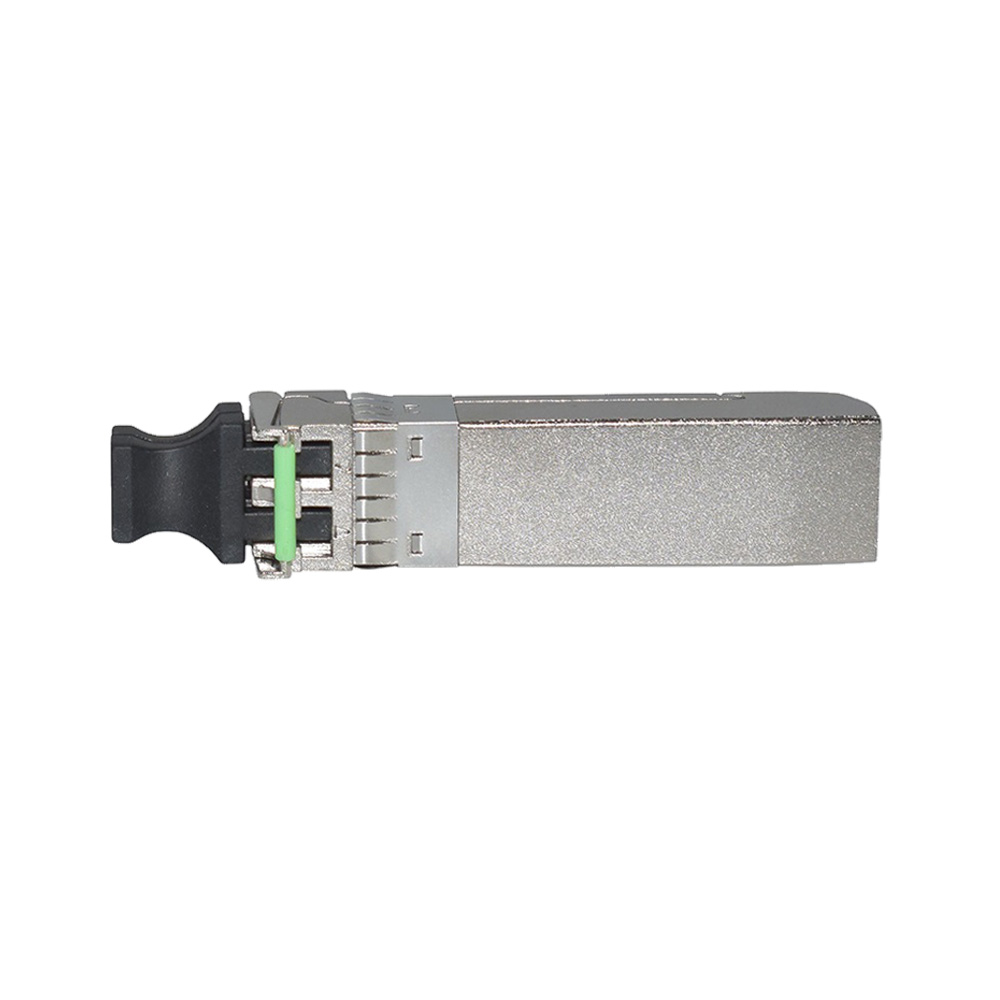

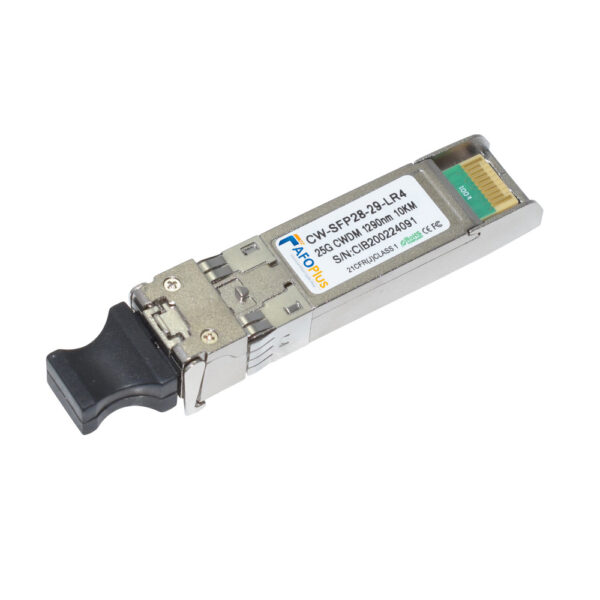

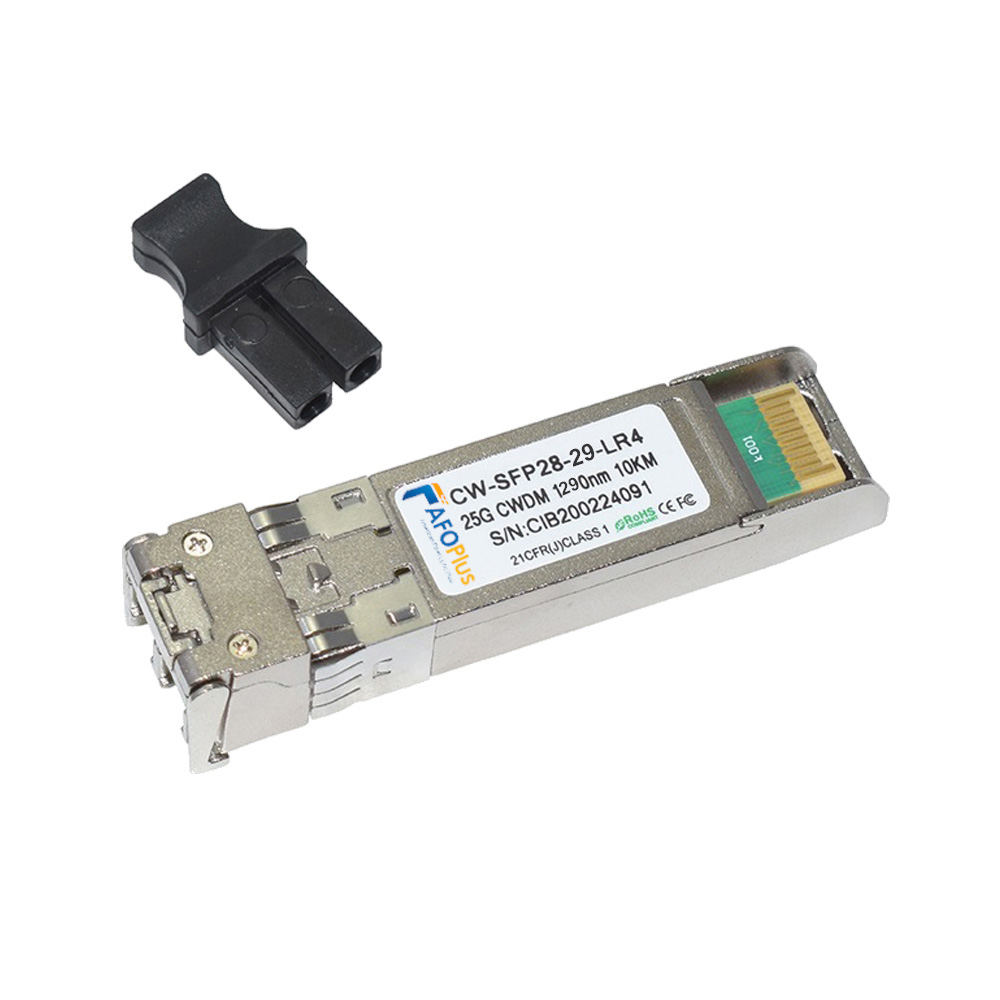

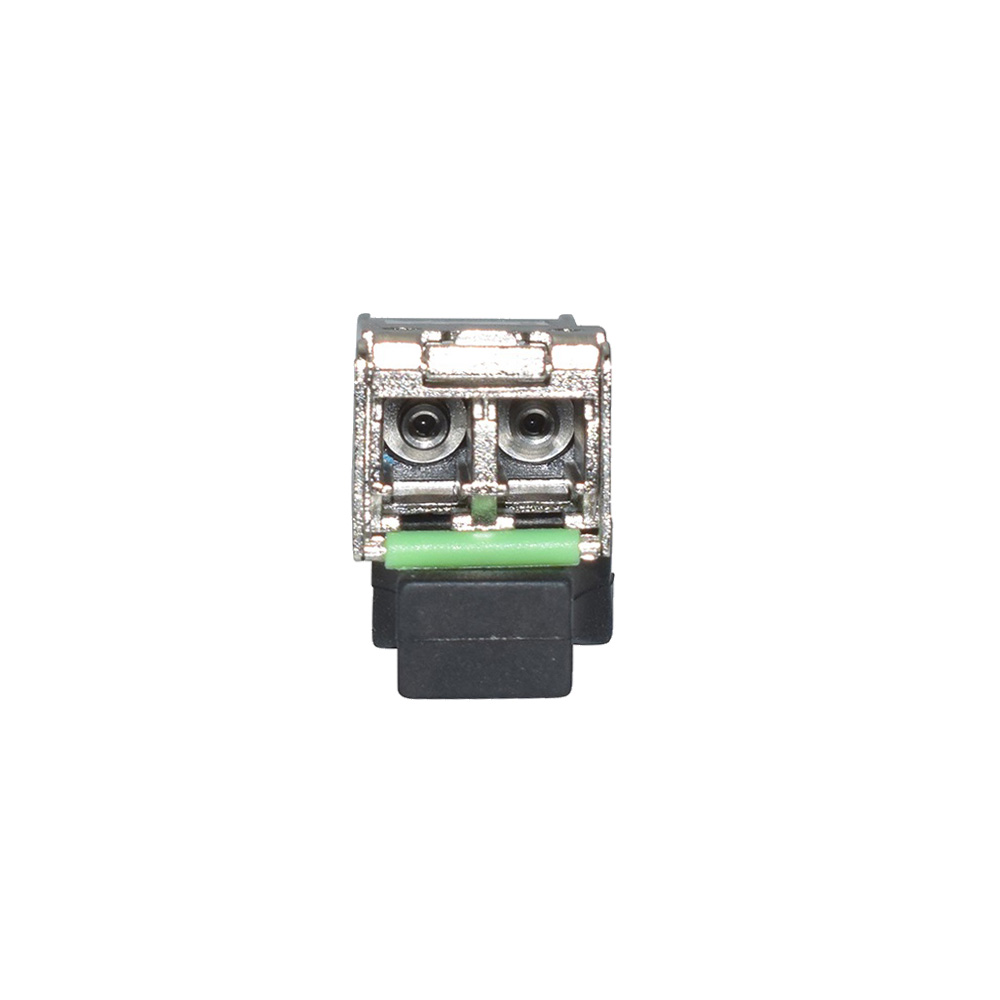

CWDM 25G SFP28 fiber optical transceiver is designed to support data rates of up to 25 gigabits per second. Operating within the 1270-1370nm wavelength range, this fiber optical transceivers is specifically engineered for use in CWDM networks. With a transmission distance of 10km, the cwdm sfp28 module seamlessly connects network nodes across short- to medium-haul distances. The single mode sfp28 module features duplex LC/UPC ports for reliable and robust fiber connections, ensuring minimal optical loss and maximum network throughput. The single-mode fiber design ensures low attenuation and high bandwidth, making it ideal for long-distance transmission.

Form Factor	SFP28	Max Data Rate	25Gbps
Wavelength	1270-1370nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
TX Power	0~6dBm	Receiver Type	PIN
Transmitter Type	CWDM DFB	Receiver Sensitivity	<-14dBm
Power Consumption	≤1.5W	Extinction Ratio	>3.5dB
Power Budget	14dB	Commercial Temperature Range	0°C to 70°C(32℉-158℉)
DDM/DOM	Supported	Protocols	MSA Compliant, CPRI, eCPRI
