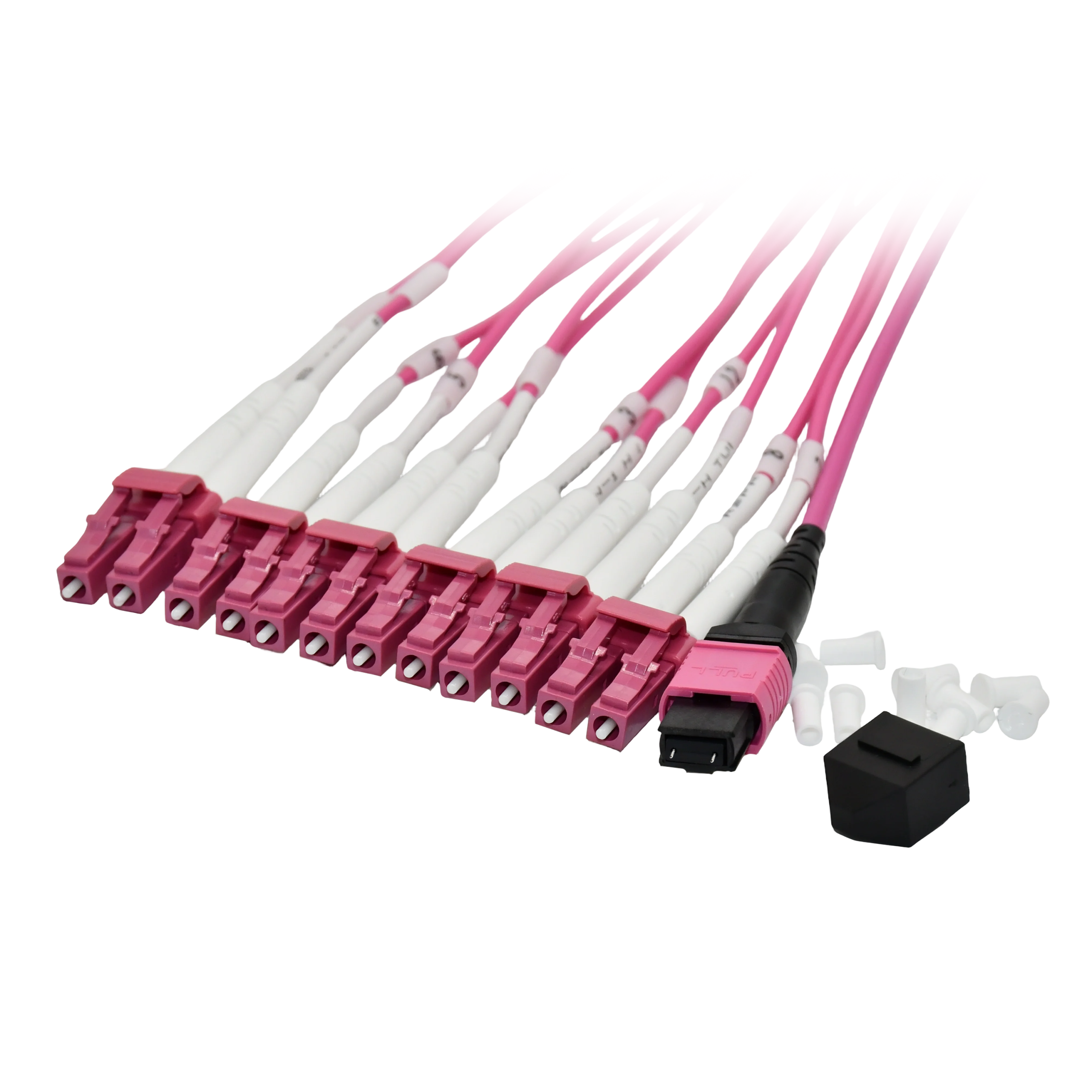

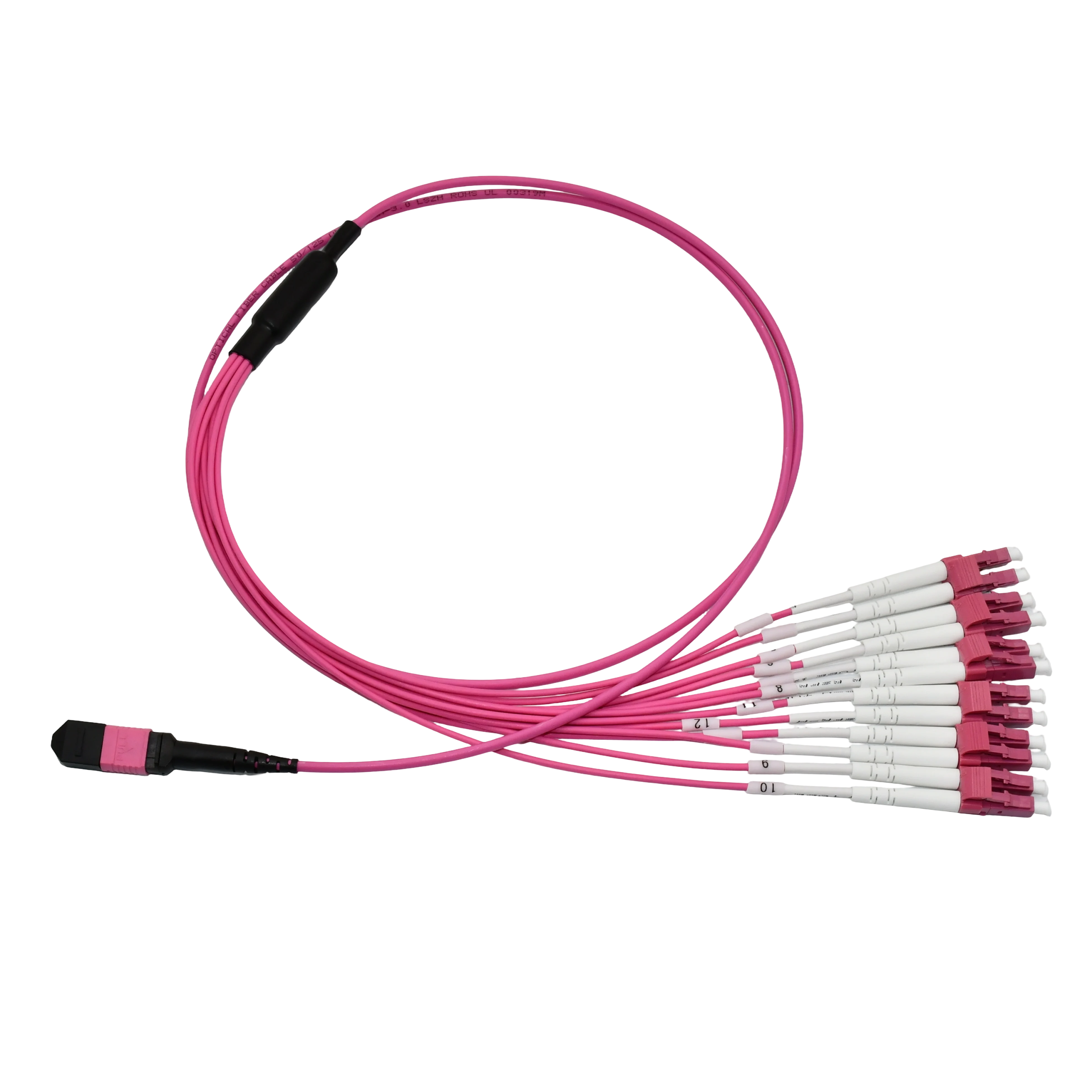

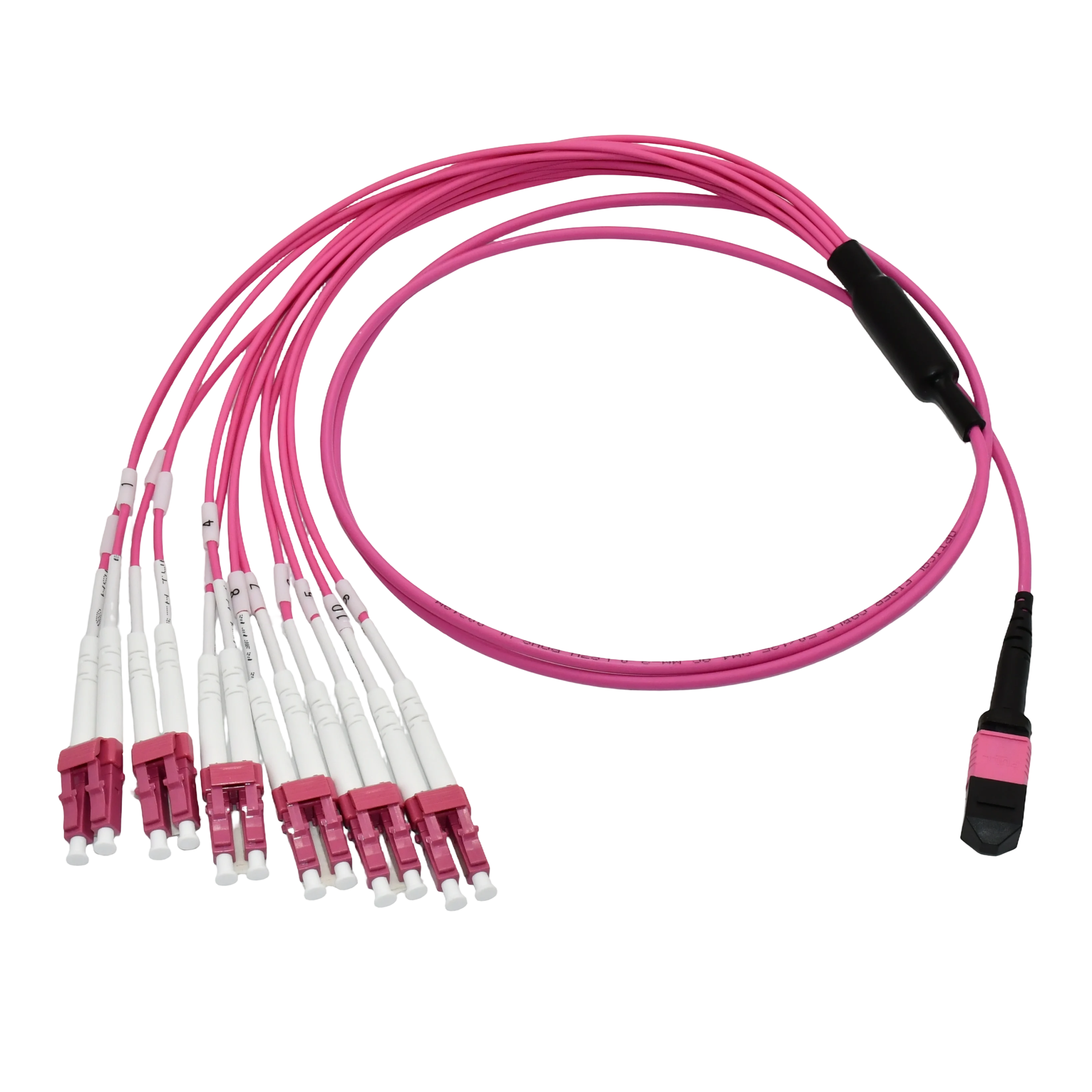

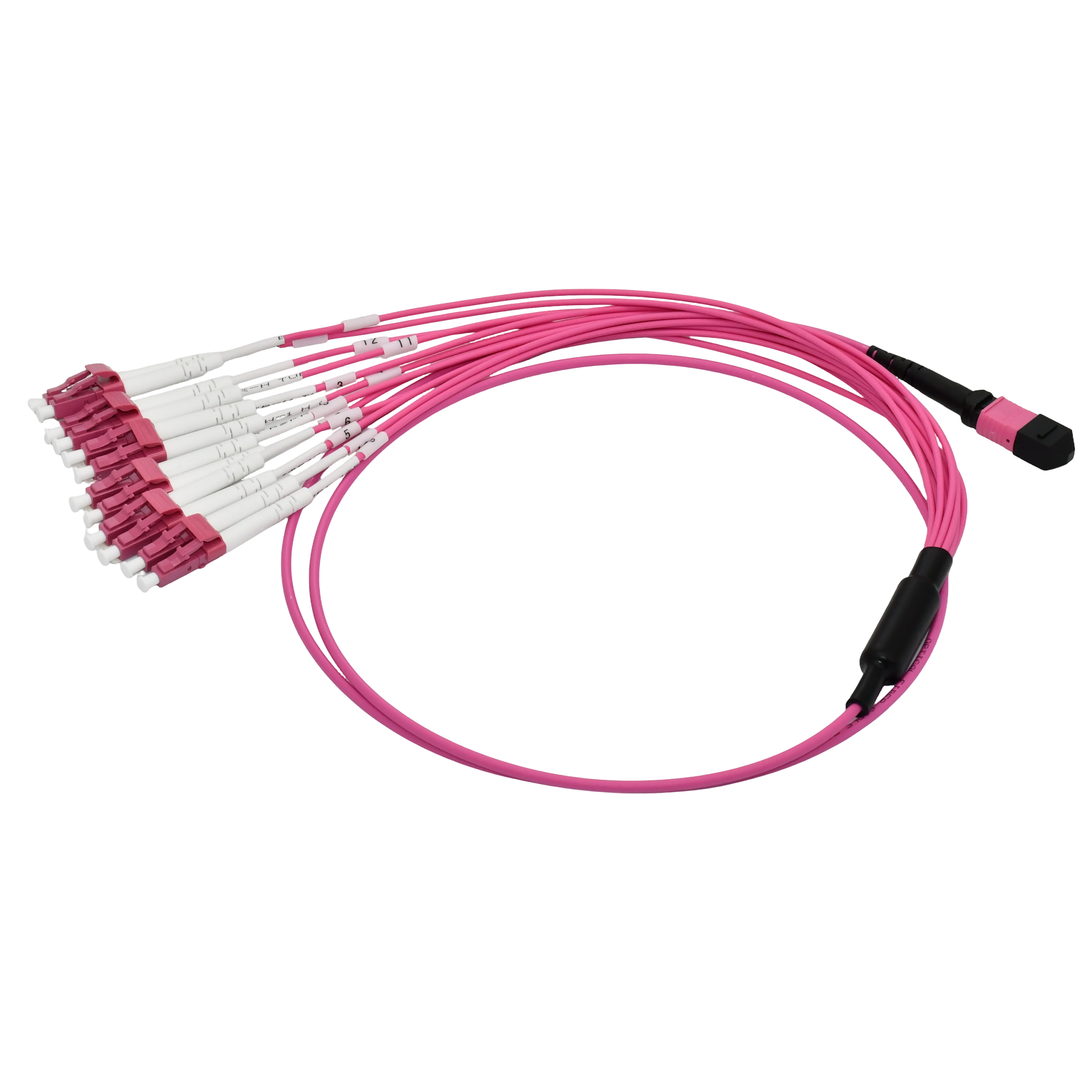

Delivering high-speed connectivity for enterprise and data center applications, this MPO breakout patchcord is built with OM4 multimode fibers for superior performance. It provides a low insertion loss of 0.35dB Max, ensuring high-quality data transmission and reduced signal attenuation. The cable features Type B polarity, making it suitable for structured cabling systems that require correct channel mapping for parallel optics. Its 3.0mm OFNR riser-rated jacket offers flame resistance, allowing safe use in vertical riser spaces between building floors. With MPO male to LC/UPC connectors, the patchcord enables easy breakout and flexible integration into network systems. Engineered for reliability, scalability, and safety, it is an excellent choice for mission-critical fiber optic infrastructures.

Connector A	MPO Male	Connector B	LC/PC
Fiber Count	12 Fibers	Glass Fiber	OM4
Polish Type	PC to PC	Cable Jacket	PVC-OFNR (Riser)
Wavelength	850/1300nm	Polarity Type	Type B
Trunk Outside Diameter (OD)	3.0mm	Tensile Strength (Long/Short Term)	110/370N
MPO Insertion Loss	≤0.35dB	LC Insertion Loss	≤0.30dB
MPO Return Loss	≥25dB	LC Return Loss	≥35dB
Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)	Minimum Bend Radius (Optical Fiber)	10mm
Operating Temperature	-20 to 60°C	Storage Temperature	-20 to 60°C
