MTP LC UPC Fiber Patch Cord (1)

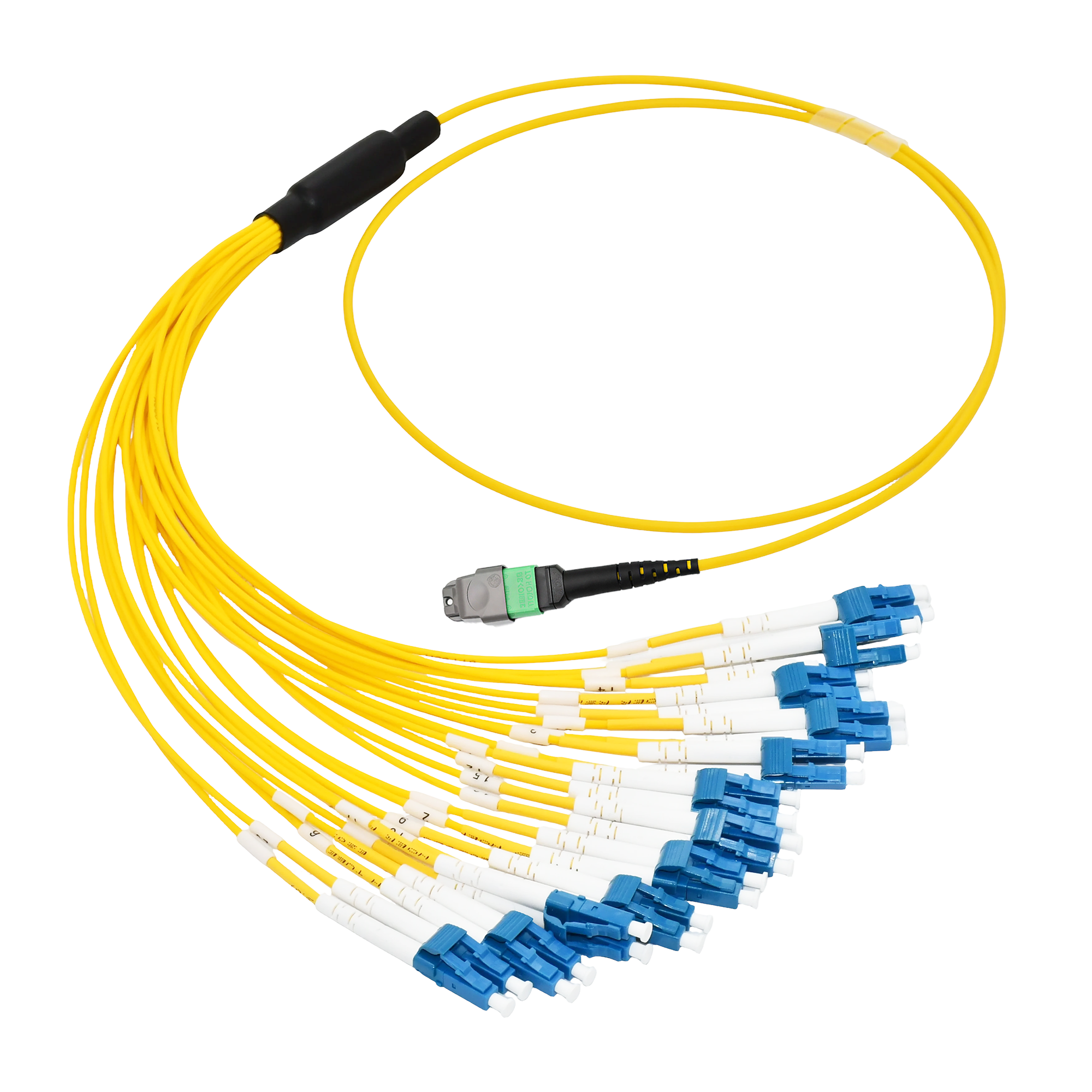

MTP LC UPC Fiber Patch Cord (2)

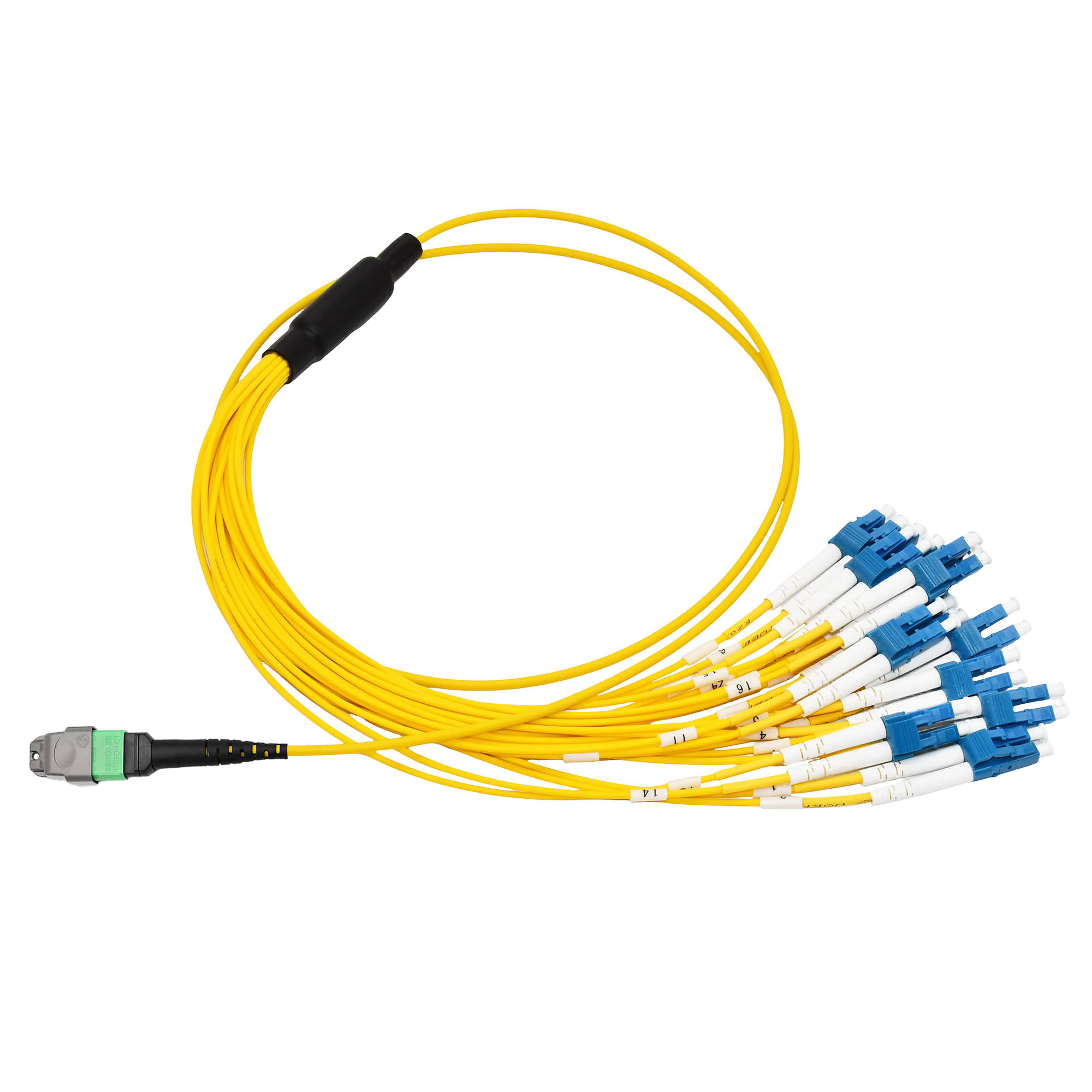

MTP LC UPC Fiber Patch Cord (3)

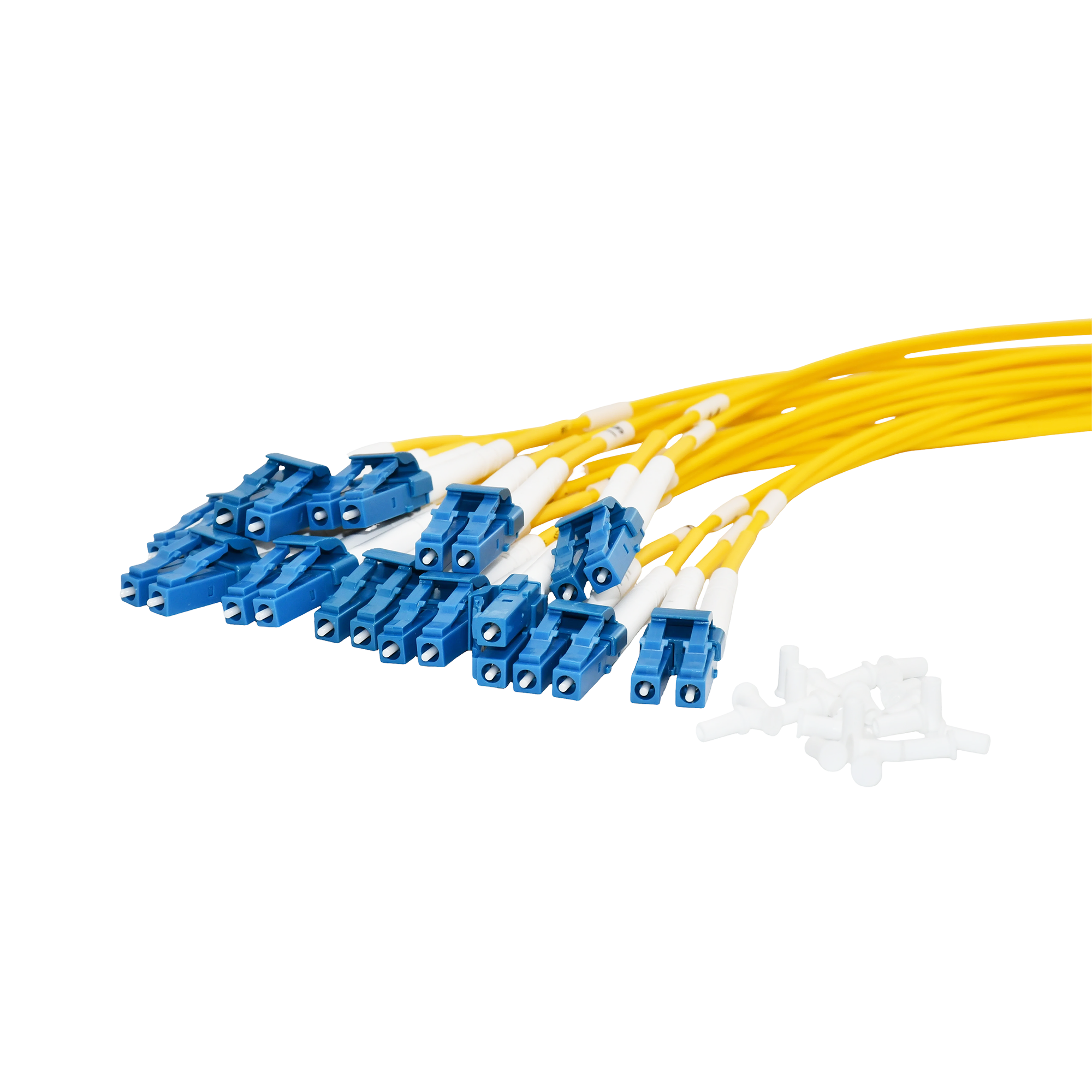

MTP LC UPC Fiber Patch Cord (4)

Fiber Optic Patch Cable|Fiber Optic Patchcord US Conec MTP-LC/UPC Male 24 Cores Type B Single Mode OS2 Corning G657A1 Elite Low Loss 0.35dB Max 3.0mm OFNP Plenum 2m (6.5ft)

SKU: AMTLLUM3S2OP02

Price range: $104.54 through $134.03
Buy more to save

Length
1m(3ft)2m(6.5ft)3m(10ft)5m(16.5ft)7m(23ft)10m(33ft)15m(50ft)20m(66ft)25m(82ft)30m(98ft)
  • Shipping via DHL/FedEx |
  • 1 year Warranty
  • 30 Days Returns
  • 30 Days Exchange
2392586 200

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • If order <50pcs, ship next day; if order 51-100pcs, ship within 48hours(except Friday); if order 101-500pcs, ship in 4 working days, if order 500pcs+, negotiate the shipping time.
QuantityPrice
1 - 4$134.03
5 - 49$127.33
50 - 99$117.95
100 +$104.54

Fiber Optic Patch Cable|Fiber Optic Patchcord US Conec MTP-LC/UPC Male 24 Cores Type B Single Mode OS2 Corning G657A1 Elite Low Loss 0.35dB Max 3.0mm OFNP Plenum 2m (6.5ft)

Specifications

Connector AMTP MaleConnector BLC/UPC
Fiber Count24 FibersGlass FiberOS2
Polish TypeUPC to UPCCable JacketPVC-OFNP (Plenum)
Wavelength1310/1550nmPolarity TypeType B
Trunk Outside Diameter (OD)3.0mmTensile Strength (Long/Short Term)110/370N
MPO Insertion Loss≤0.35dBLC Insertion Loss≤0.30dB
MPO Return Loss≥50dBLC Return Loss≥50dB
Min. Bend Radius (Fiber Cable)20/10D (Dynamic/Static)Minimum Bend Radius (Optical Fiber)10mm
Operating Temperature-20 to 60°CStorage Temperature-20 to 60°C

Videos

Applications

FAQ

It is specifically designed for singlemode applications, as indicated by "Single Mode OS2".
"Type B" refers to the polarity configuration of the MTP connector, ensuring proper fiber alignment between transmit and receive ports in multifiber systems.?
"3.0mm" is the outer diameter of the cable's jacket, providing durability and protection for the internal fibers.?
Yes, MTP connectors are compatible with MPO connectors.
UPC has a flat endface with low reflection, while APC has an angled endface for even lower reflection. This cable uses UPC.?
