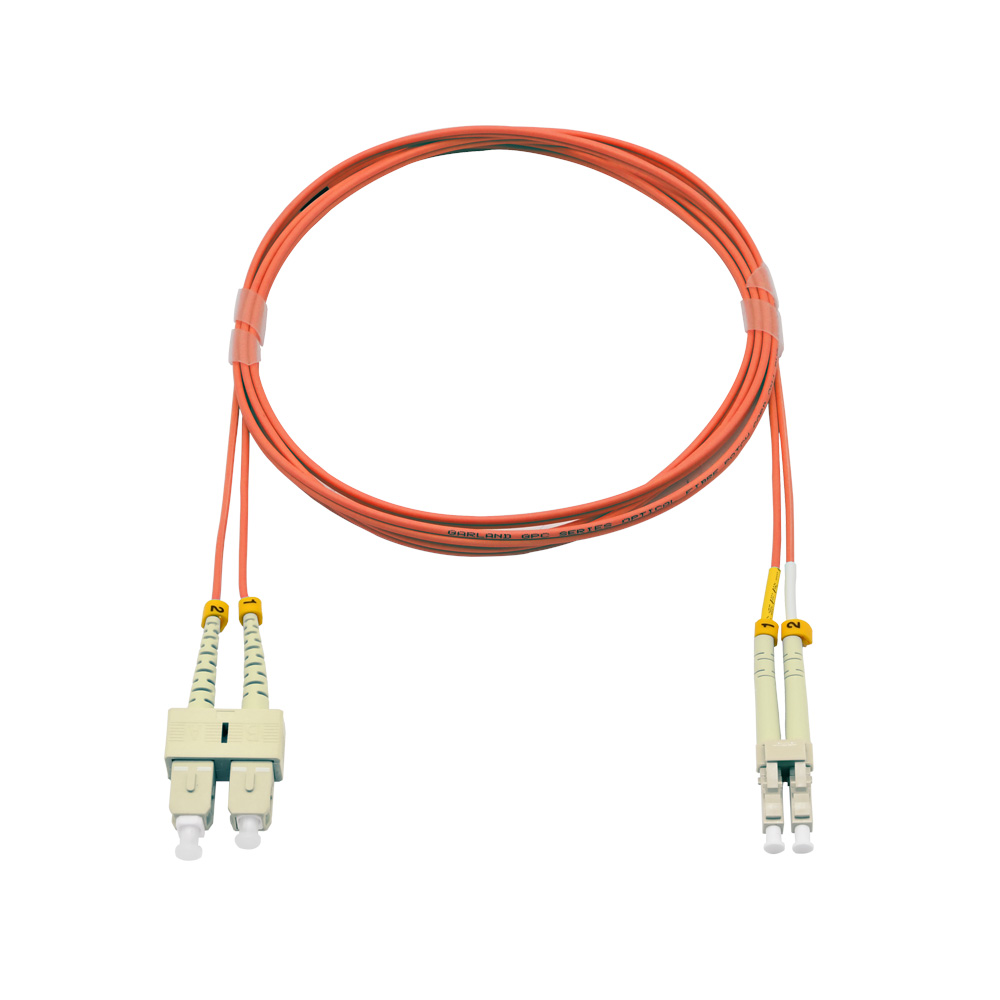

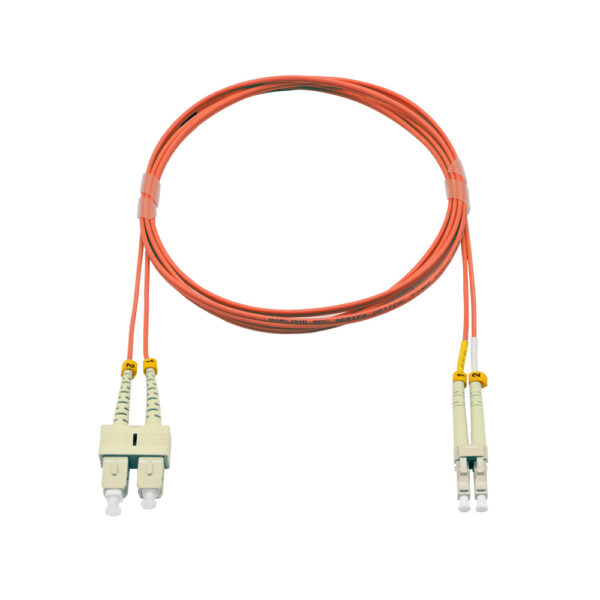

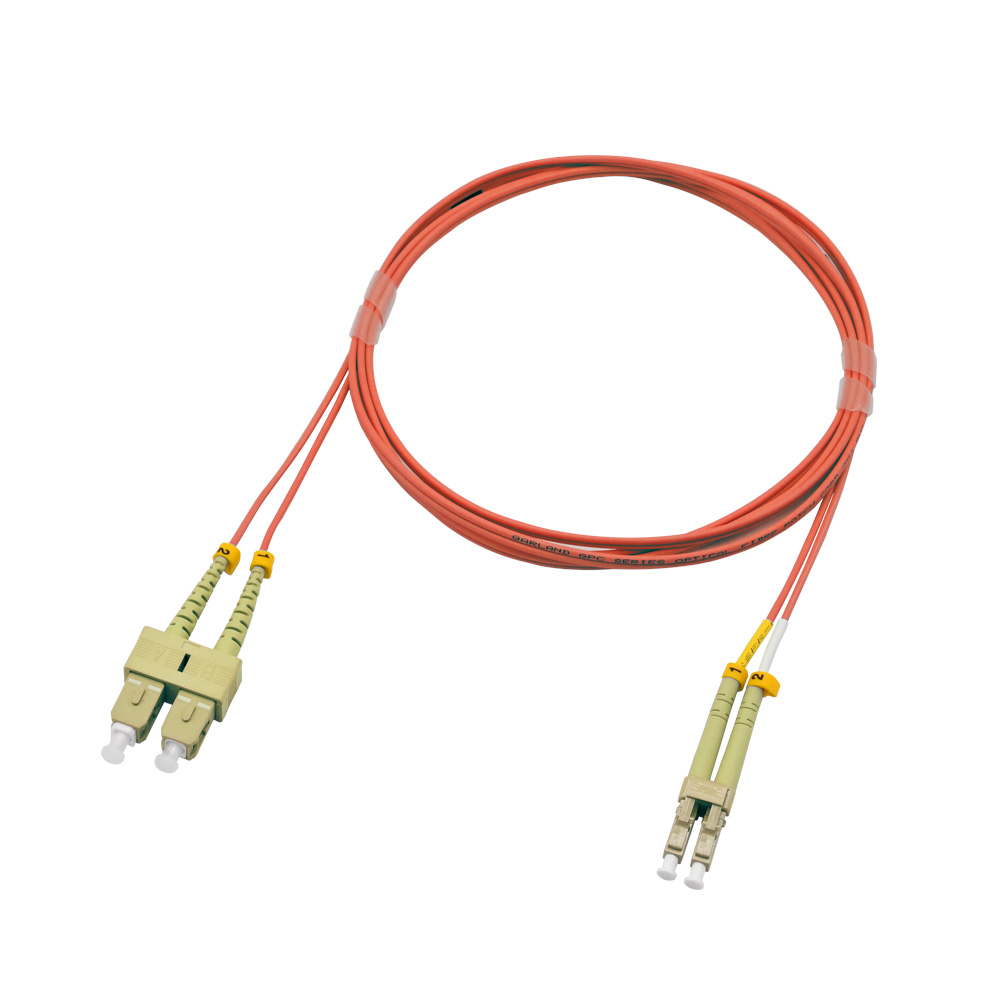

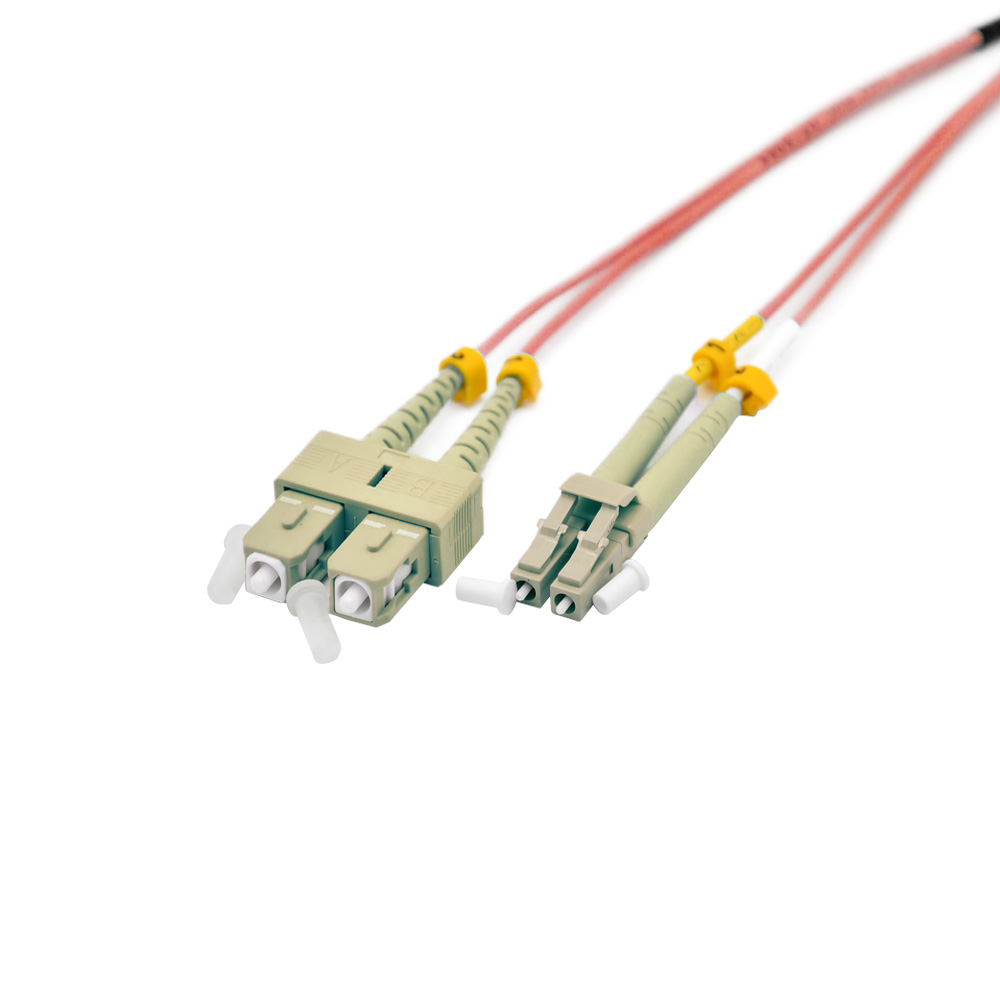

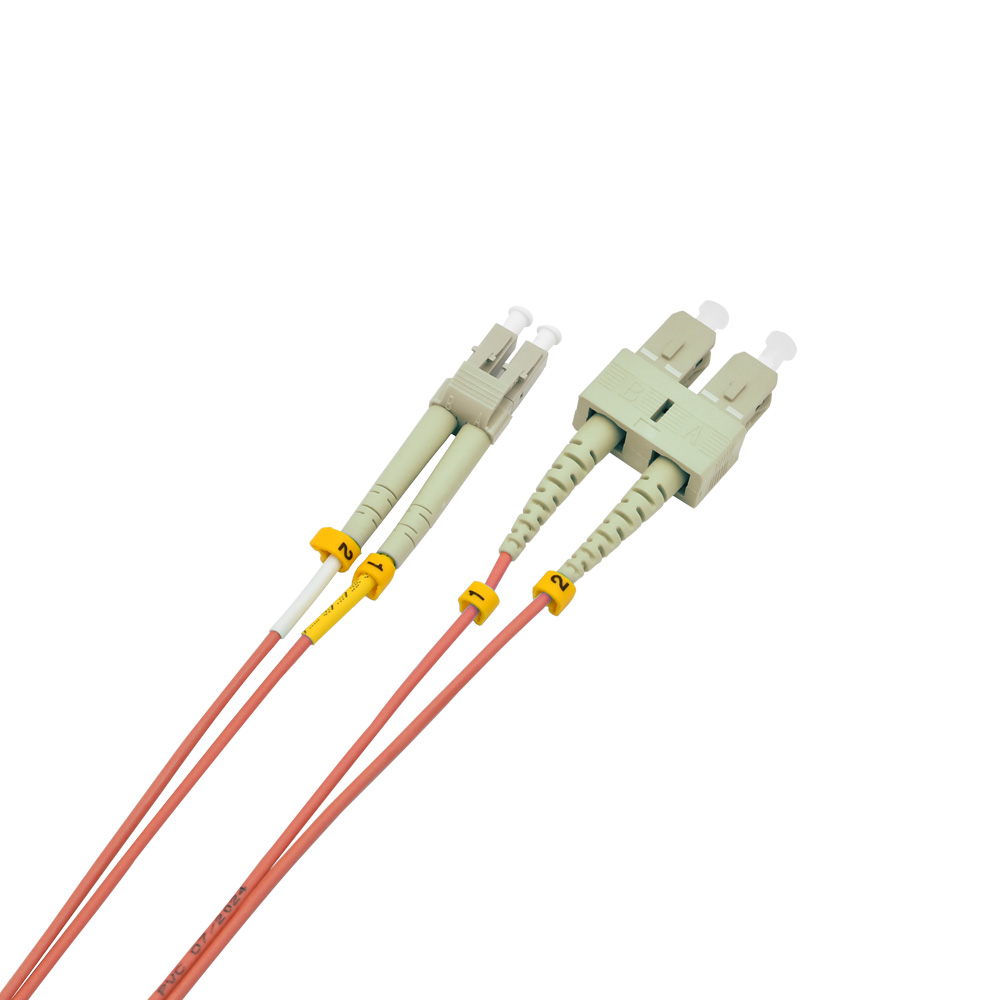

AFOPLUS's duplex 2.0mm lc sc duplex multimode fiber patchcord is a high-quality fiber cable that offers exceptional performance and reliability. The LC to SC/PC connectors are designed for easy installation and provide a secure connection. The OM2 multi mode 50/125um fiber is optimized for high-speed data transmission, ensuring fast and accurate data transfer. The 2.0mm outer OFNR riser jacket make it suitable for use in vertical shafts between floors, providing a safe and reliable solution for your fiber optic network. This lc sc fiber optic patch cable is constructed with durable materials and advanced manufacturing techniques, ensuring long-term performance and reliability.

Connector A	LC PC Duplex	Connector B	SC PC Duplex
Fiber Count	2 Fiber	Fiber Grade	OM2
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
