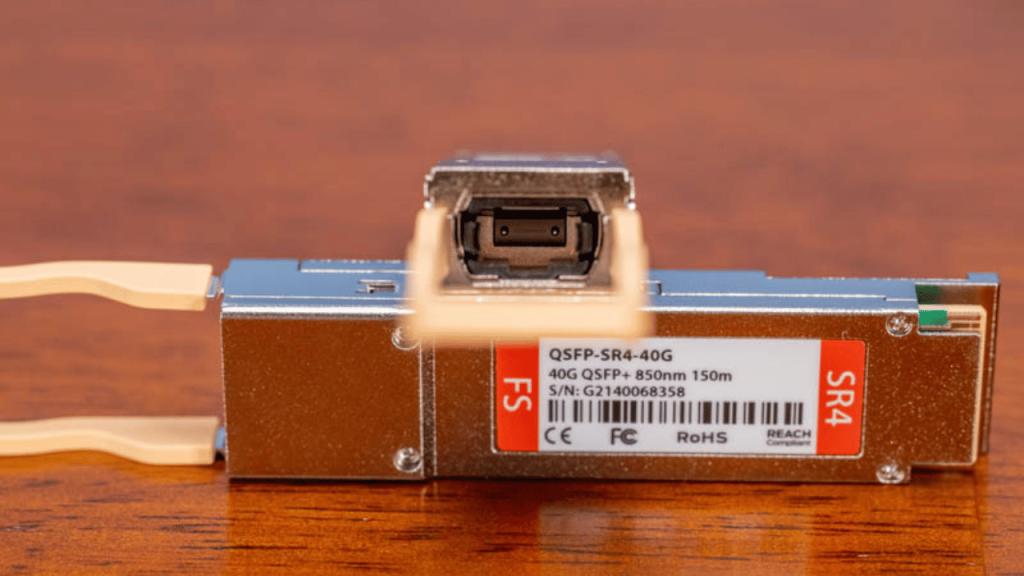

The 40G QSFP SR4 is a high-performance optical transceiver designed to meet the demands of modern networking. This module allows data centers and enterprises to transfer data at speeds up to 40 gigabits per second, ensuring fast and reliable connections. It works by using four channels, each capable of carrying 10G signals over multi-mode fiber cables. The 40G QSFP SR4 is especially popular for short-range data center interconnects, offering great value in high-bandwidth environments.
This optical module is an essential part of many large-scale networks, providing scalable solutions for upgrading from 10G to 40G systems. By choosing the 40G QSFP SR4, businesses can achieve greater efficiency without the hassle of complex fiber setups. With its compatibility with most modern switches and routers, this module makes network upgrades smoother and more cost-effective, giving you the speed and reliability your network needs to stay ahead.
Understanding The Basics of 40G QSFP SR4
The 40G QSFP SR4 is a high-speed optical transceiver designed to handle 40 gigabits per second (Gbps) of data transfer. It is part of the QSFP+ family, which stands for Quad Small Form-Factor Pluggable, and is widely used in data centers and high-performance networks. The SR4 version specifically supports short-range connections, making it ideal for use within a single data center or across nearby network equipment.
This transceiver uses four separate optical lanes, each capable of transmitting 10G of data, which allows for efficient and high-speed data transmission over multi-mode fiber cables. The 40G QSFP SR4 operates at a wavelength of 850 nm and is compatible with both OM3 and OM4 fiber types, providing reliable performance across a range of distances.
The key advantage of the 40G QSFP SR4 is its ability to deliver high bandwidth without the need for complex setups, making it an excellent choice for modern, fast-paced networks.
Key Applications of 40G QSFP SR4
The 40G QSFP SR4 transceiver is a versatile and high-performance solution that supports a range of networking applications. Designed to handle 40 gigabits per second of data transfer, it offers a reliable and cost-effective way to enhance network speeds, particularly in environments where high bandwidth and short-range connectivity are required.
Below are the ideal use cases for this powerful transceiver:
Ideal Use Cases: Data Center Interconnects
The 40G QSFP SR4 is ideal for data center interconnects, where large volumes of data need to be transferred quickly and reliably. Its high-speed performance makes it perfect for connecting servers, switches, and storage devices within a data center. The short-range capability of the SR4 makes it well-suited for these environments, where distances are generally limited to a few hundred meters. By using 40G QSFP SR4 transceivers, data centers can achieve faster data transfer rates, higher network efficiency, and better scalability.
40G SR4 for High-Speed Breakout Applications

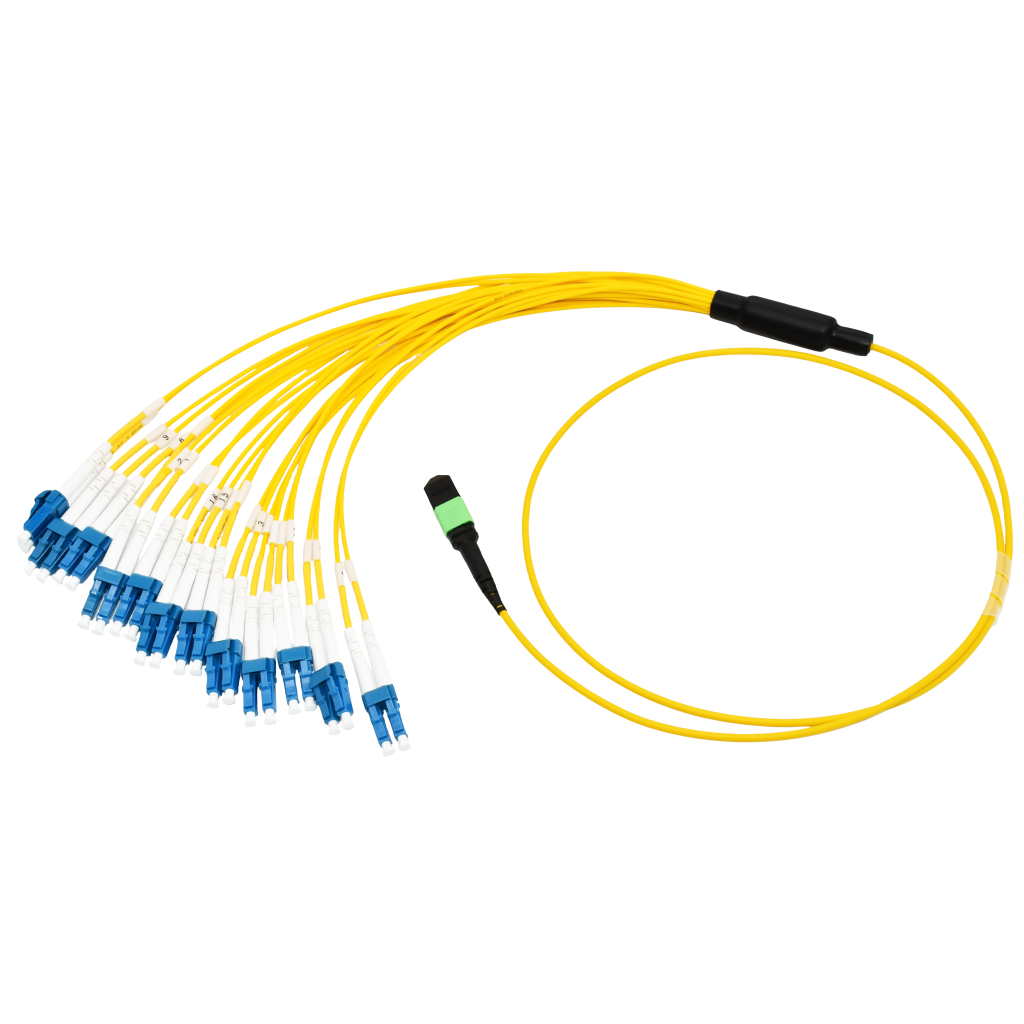

Another key application for the 40G QSFP SR4 is breakout configurations, where a single 40G connection is split into multiple 10G connections. This is commonly used in high-performance networking scenarios where the network must accommodate both legacy systems and newer high-speed infrastructure. The SR4 allows businesses to efficiently scale their networks without overhauling their entire setup, ensuring smooth transitions to higher speeds without sacrificing reliability or performance.
Upgrading from 10G to 40G: When SR4 is the Best Choice
For organizations looking to upgrade their network from 10G to 40G, the 40G QSFP SR4 is an excellent choice. It provides a simple, cost-effective way to increase network speeds without replacing existing infrastructure. The SR4 offers backward compatibility with 10G systems, making it an easy upgrade path for businesses seeking better performance. Whether it’s for handling increased data traffic or preparing for future growth, the 40G QSFP SR4 offers the perfect balance of speed, cost, and scalability when transitioning to a 40G network.
Deploying 40G QSFP SR4: Best Practices and Considerations
Before diving into the specific applications of the 40G QSFP SR4, it’s important to understand how this powerful transceiver fits into modern network infrastructures. Designed for high-speed, short-range connectivity, the SR4 provides businesses with a scalable and efficient solution for handling increasing data demands.
Below, we explore the key use cases where the 40G QSFP SR4 truly shines:
Fiber Infrastructure: OM3 vs OM4 for Maximum Reach
When deploying the 40G QSFP SR4, choosing the right fiber infrastructure is crucial for maximizing performance and reach. The SR4 module is designed to work with multi-mode fiber cables, specifically OM3 and OM4 fibers. OM3 fiber supports a maximum reach of up to 100 meters, while OM4 can extend this distance to 150 meters for optimal performance at 40G speeds. To achieve the best results, it’s recommended to use OM4 fiber in environments where you need to maximize the transceiver’s reach and ensure higher data transfer rates over longer distances.
Connecting and Installing SR4 Modules in Your Network
Installing 40G QSFP SR4 modules is a straightforward process but requires attention to detail. Begin by ensuring that your network equipment, such as switches and routers, is compatible with QSFP+ transceivers. Insert the SR4 module into the corresponding slot, making sure it clicks into place securely. Use MPO/MTP connectors to link the SR4 module to your fiber cables. It’s important to follow proper handling procedures to avoid damaging the transceiver during installation. Ensure that the fiber cables are routed correctly, and double-check all connections to ensure reliable signal integrity.
Troubleshooting and Maintenance Tips for 40G SR4 Deployments
To keep your 40G QSFP SR4 modules running smoothly, regular maintenance and troubleshooting are essential. One common issue is signal degradation, often caused by dirty or improperly connected fiber cables. Clean your fiber optic connectors regularly using a lint-free cloth or cleaning tool to avoid performance loss. In case of network issues, check for fiber misalignment, verify the transceiver’s diagnostic readouts, and ensure that the module is seated properly. Additionally, monitor the transceiver’s operating temperature, as overheating can lead to reduced performance or failure. Following these maintenance practices will help you maintain a reliable and efficient network.
Final Thoughts
The 40G QSFP SR4 is an essential component for high-speed, efficient networking in data centers and modern infrastructures. Whether you’re upgrading your network, optimizing for high-bandwidth applications, or improving interconnects, the SR4 offers the performance and reliability you need. At AOF Plus, we specialize in providing top-tier networking solutions, including high-quality optical transceivers like the 40G QSFP SR4. Our goal is to help businesses build robust, scalable, and future-ready networks with products that ensure maximum performance and value.
If you’re looking to enhance your network and are ready to invest in reliable transceivers, visit our website and explore our extensive range of networking solutions. We’re here to provide the support and expertise you need to optimize your network for success.
