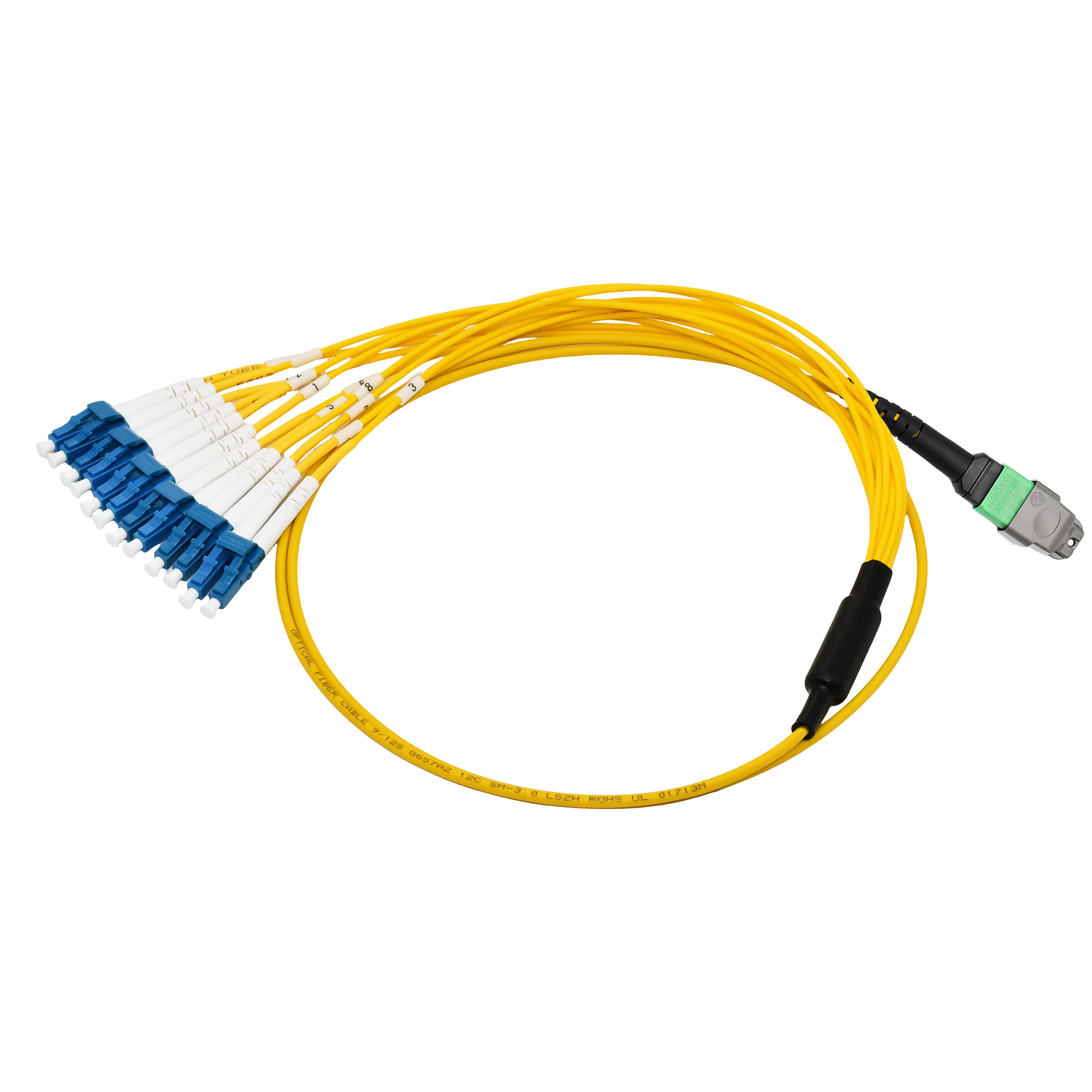

12 cores MTP LC UPC optical patch cord 1

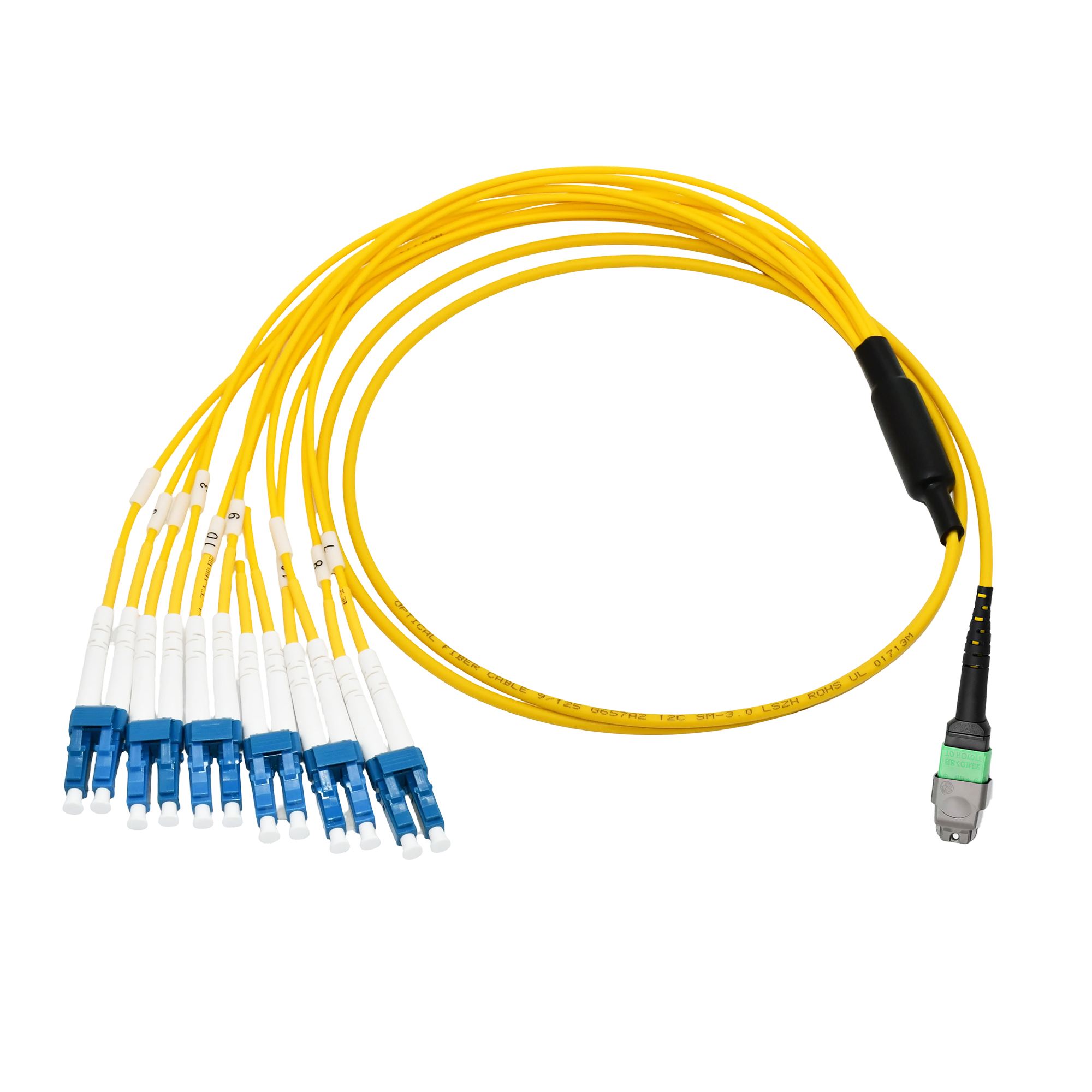

12 cores MTP LC UPC optical patch cord 2

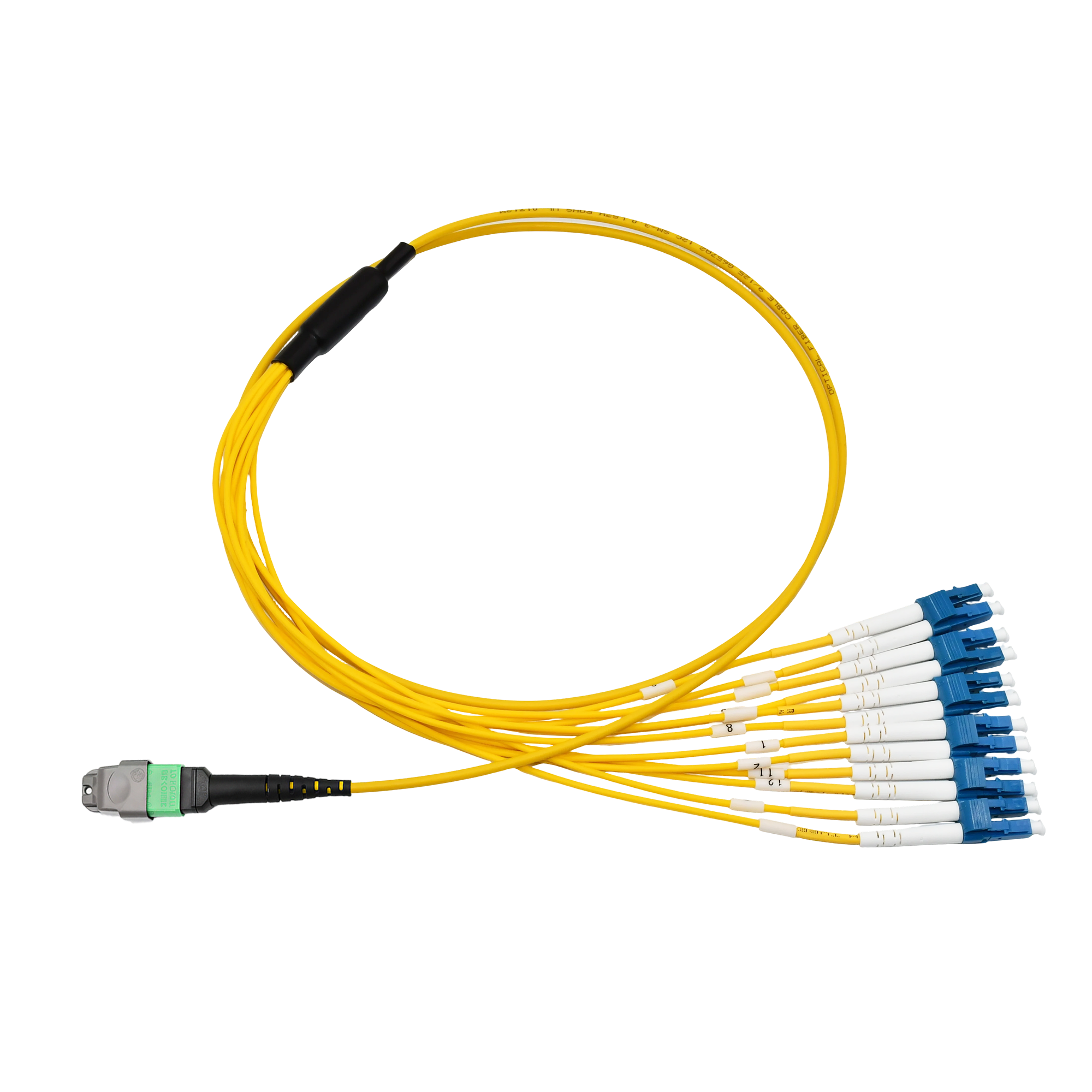

12 cores MTP LC UPC optical patch cord 3

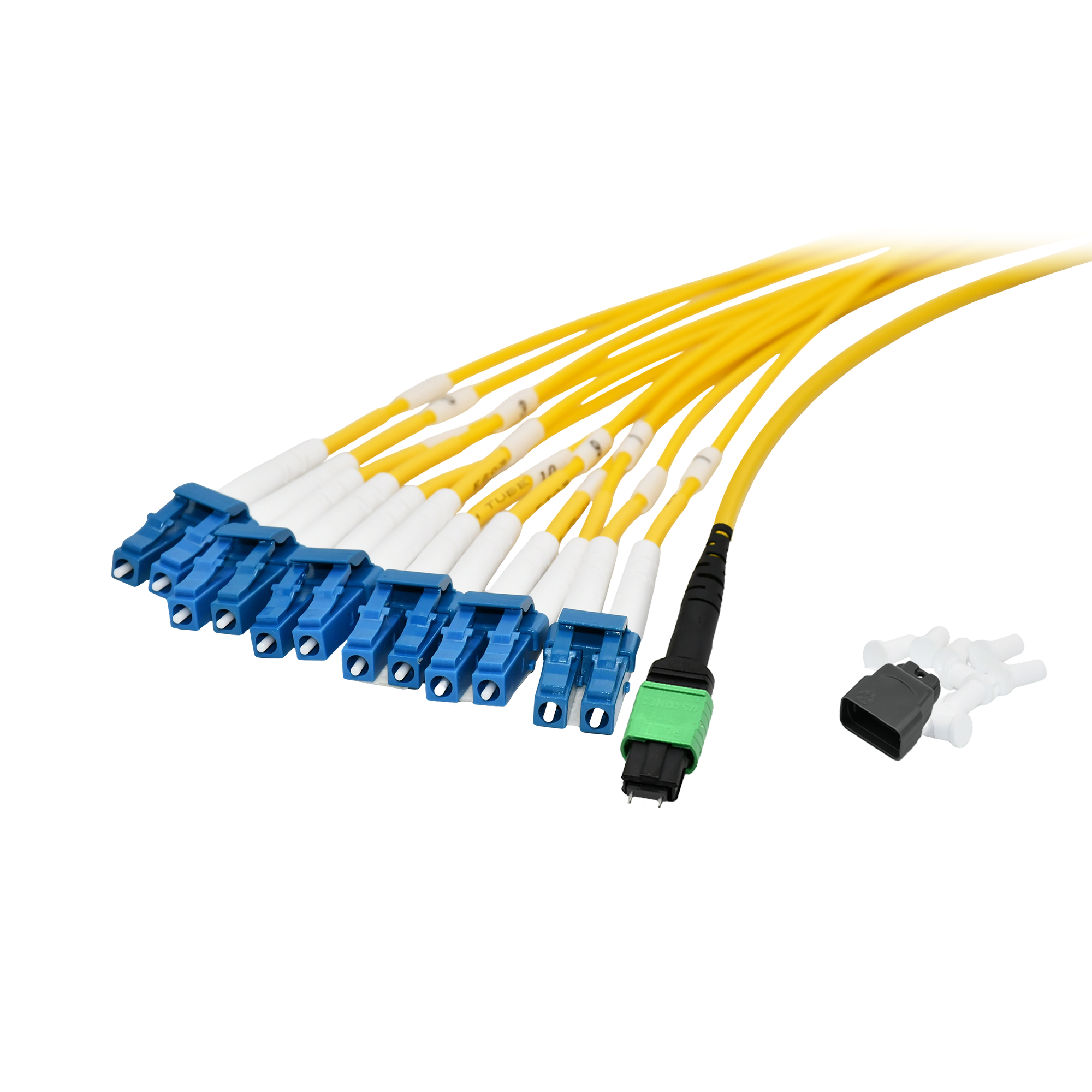

12 cores MTP LC UPC optical patch cord 4

Fiber Optic Patch Cable|Fiber Optic Patchcord US Conec MTP-LC/UPC Male 12 Cores Type B Single Mode OS2 Corning G657A1 Elite Low Loss 0.35dB Max 3.0mm Flame Retardant LSZH 2m (6.5ft)

SKU: AMTLLUM2S2FL02

Price range: $47.63 through $61.06
Buy more to save

Length
1m(3ft)2m(6.5ft)3m(10ft)5m(16.5ft)7m(23ft)10m(33ft)15m(50ft)20m(66ft)25m(82ft)30m(98ft)
  • Shipping via DHL/FedEx |
  • 1 year Warranty
  • 30 Days Returns
  • 30 Days Exchange
2392586 200

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • If order <50pcs, ship next day; if order 51-100pcs, ship within 48hours(except Friday); if order 101-500pcs, ship in 4 working days, if order 500pcs+, negotiate the shipping time.
QuantityPrice
1 - 4$61.06
5 - 49$58.01
50 - 99$53.73
100 +$47.63

Fiber Optic Patch Cable|Fiber Optic Patchcord US Conec MTP-LC/UPC Male 12 Cores Type B Single Mode OS2 Corning G657A1 Elite Low Loss 0.35dB Max 3.0mm Flame Retardant LSZH 2m (6.5ft)

Specifications

Connector AMTP MaleConnector BLC/UPC
Fiber Count12 FibersGlass FiberOS2
Polish TypeUPC to UPCCable JacketFlame Retardant LSZH
Wavelength1310/1550nmPolarity TypeType B
Trunk Outside Diameter (OD)3.0mmTensile Strength (Long/Short Term)110/370N
MPO Insertion Loss≤0.35dBLC Insertion Loss≤0.30dB
MPO Return Loss≥50dBLC Return Loss≥50dB
Min. Bend Radius (Fiber Cable)20/10D (Dynamic/Static)Minimum Bend Radius (Optical Fiber)10mm
Operating Temperature-20 to 60°CStorage Temperature-20 to 60°C

Videos

Applications

FAQ

Yes. We use Elitegrade precision endface polishing, and the measured link loss fully complies with the standard.
This is a 12fiber MTP cable (with one female MTP connector) to a 6pair LC duplex patch cord (12 LC connectors total). Each LC pair corresponds to two fibers in the MTP. The Type B design automatically matches polarity, allowing for direct plugandplay.
OFNP is the highest flame retardant rating and produces low smoke and is halogenfree.
Fully supported! The OS2 fiber + lowloss design is compatible with modules such as 40G QSFP+ (SR4/LR4) and 100G QSFP28.
We recommend using anhydrous alcohol and a dustfree cotton swab to clean the UPC endface, or a dedicated fiber optic cleaning pen.
